WH 1/4 Inch Dia. x WLL 5700lbs 4-Leg Grade 100 Chain Slings

CUSTOMIZE YOUR OWN GRADE 100 CHAIN SLING WITH THE NEW WILLIAM HACKETT RANGE!

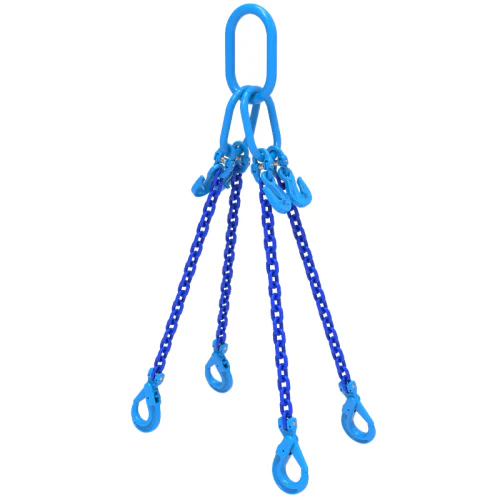

Thanks to the endless options available from William Hackett and LES™, you can now customize your chain sling to suit your individual requirements, with chain lengths from 3-30ft and sling end fittings including Clevis Sling Hook, Shortened Grab Hook & Clevis Sling Hook, Clevis Self Locker, and Shortened Grab Hook & Clevis Self Locker (See image to right)  For Hook Dimensions, please see Specifications Tab

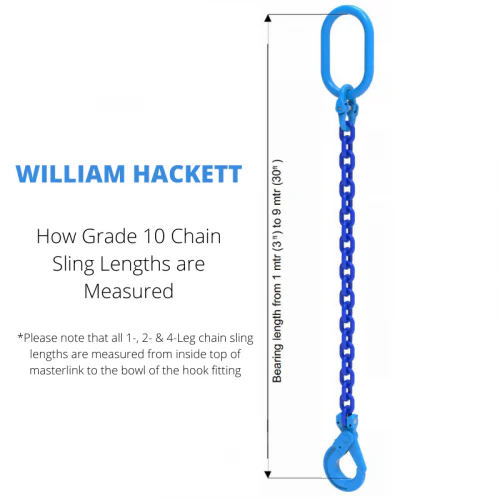

William Hackett 1/4 inch x 5700lbs 4-Leg Chain Slings are available from LES™ in a wide range of Effective Working Lengths, precisely measured from the sling assemblies bearing points - inside top of top masterlink to the bite of the hook (please see diagram below)



With a Working Load Limit of 5700lbs, these high-quality 4-leg chain slings are suitable for lifting operations in temperatures ranging from -40°C/F to +200°c  (392°F). Each component has been batch marked for full traceability and a declaration of conformity accompanies each sling purchase.



All William Hackett chain slings are manufactured in accordance with ASME B30-09-18 and ASTMA973/A973M, with all components also manufactured to the highest relevant standards including BS-EN 1677-1, ASTM A952-A952M and ASME B30.26.



All William Hackett chain sling components are proof tested to 2.5x the WLL, and once assembled in the USA, the complete sling assembly is tested to 2x the WLL.



Please note that prices start from 3ft with Clevis Sling Hook



So now all you need to do once you have selected your diameter and lifting capacity from the William Hackett product page is:



1 - Select your Effective Working Length

2 - Select your End Type Fitting(s)

3 - Add to Cart

4 - Complete your order

• Chain Diameter: 1/4”
• Working Load Limit: 5700lbs
• Number of Legs: 4
• Effective Working Length range: 3ft – 30ft
• End fitting options: Clevis Sling Hook, Shortening Grab Hook & Clevis Sling Hook, Clevis Self Locking Hook, Shortening Grab Hook & Clevis Self Locking Hook
• Suitable for operation at 90 degrees only
• Assembled & Tested In the USA*
• Batch marked
• Declaration of Conformity
• Proof tested to 2.5 times WLL

*Assembled Using Imported Components & Tested In The USA

HOOK DIMENSIONS



​
