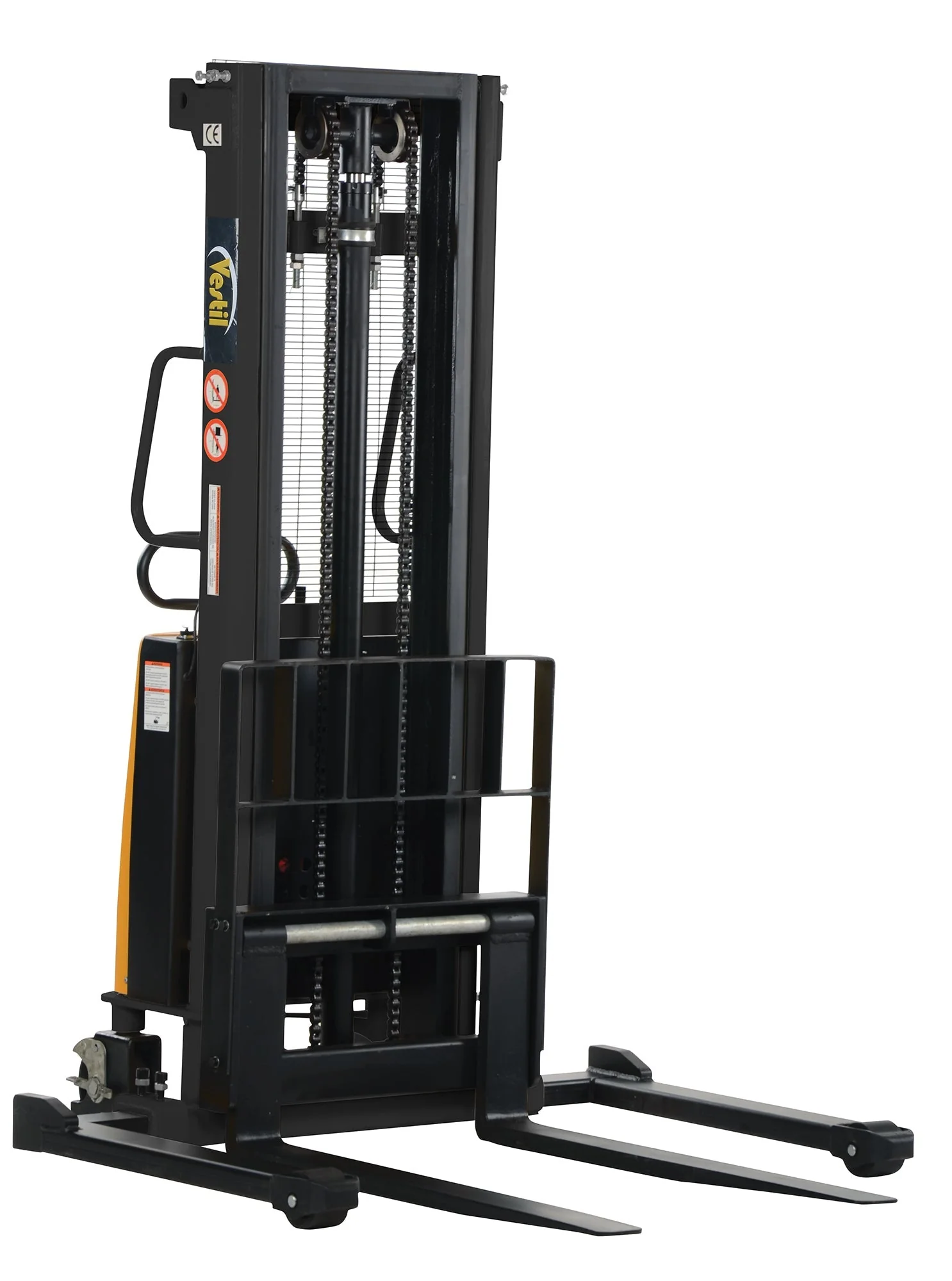

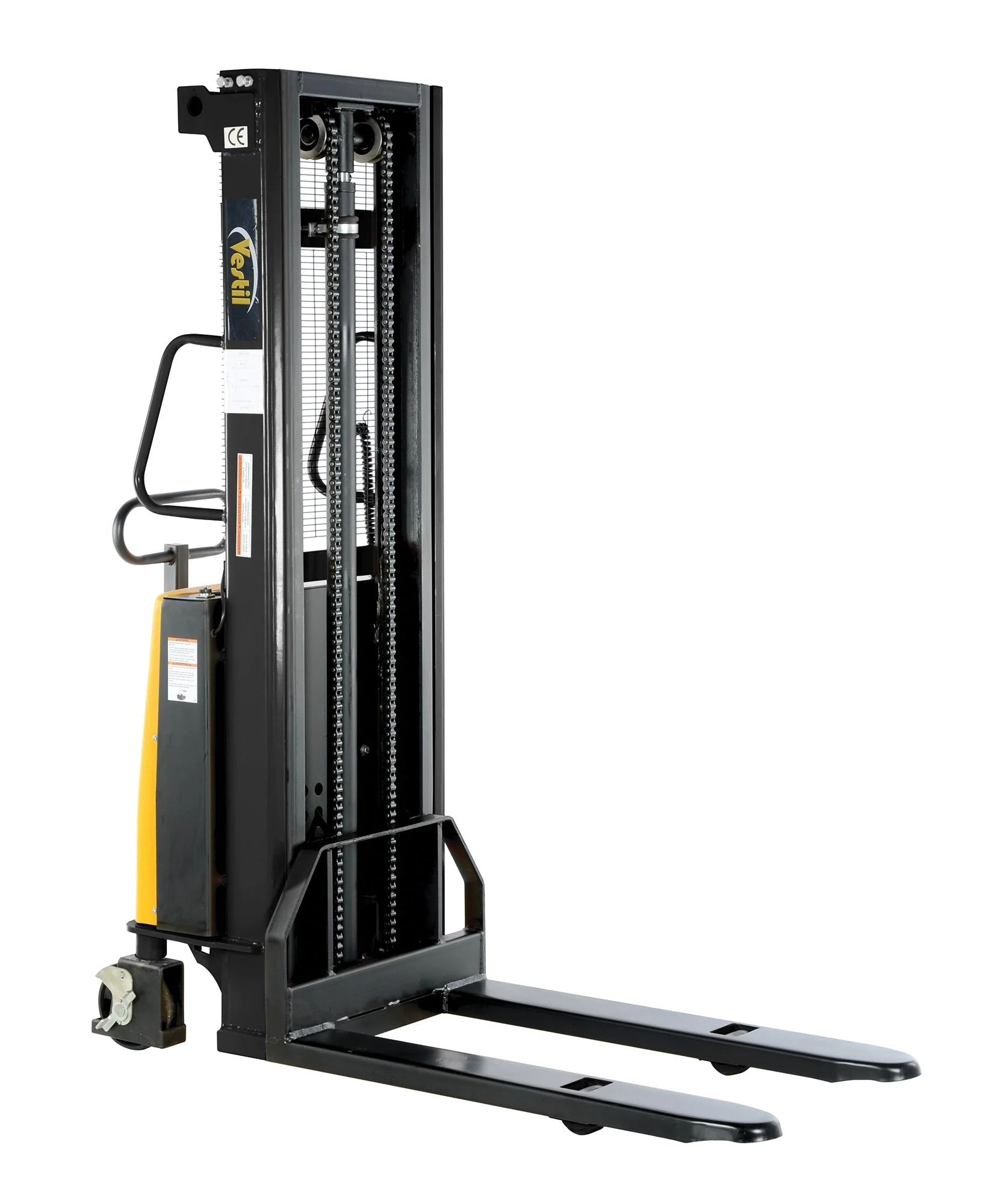

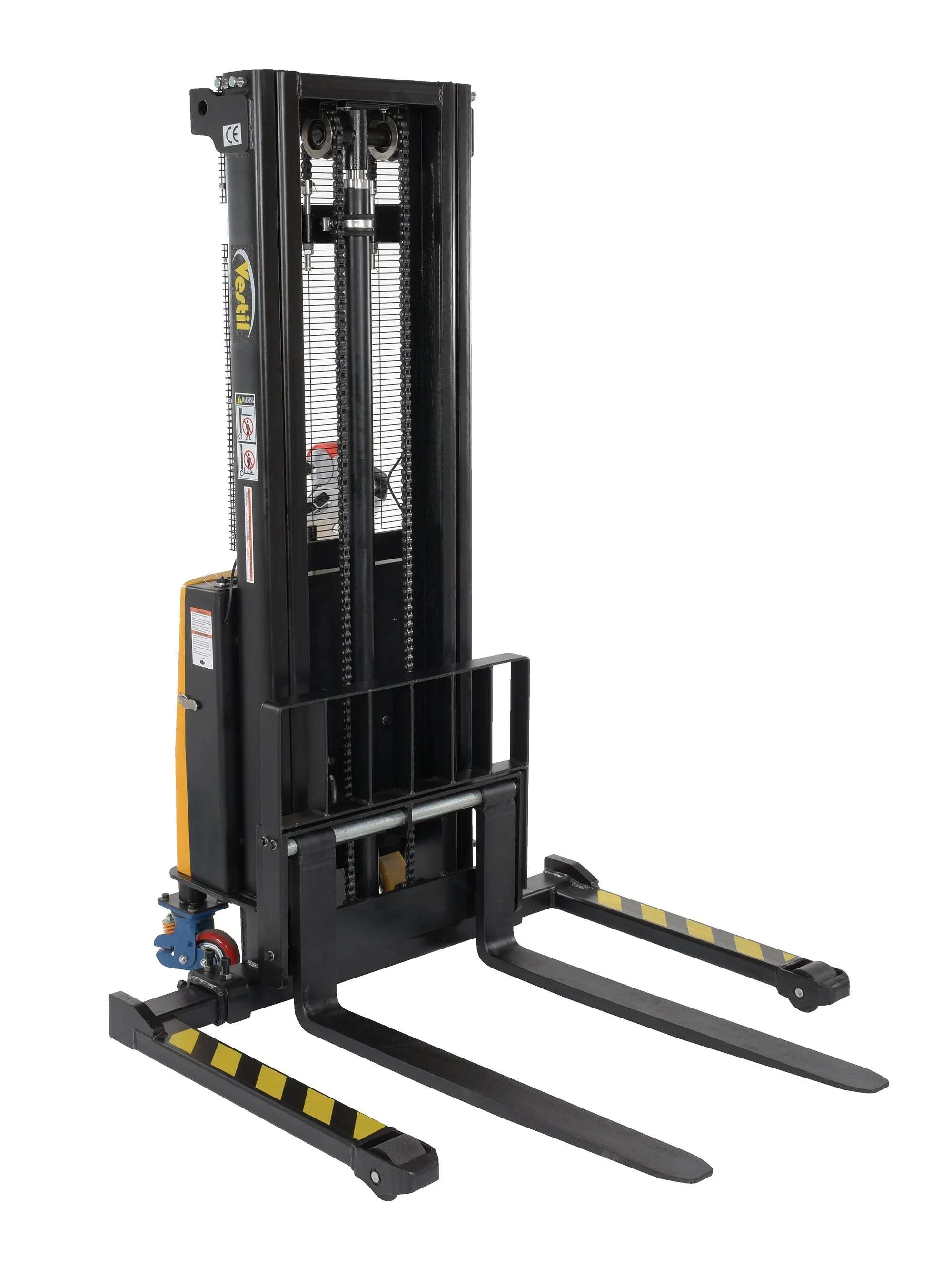

Vestil Stacker with Powered Lift

Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.



Stacker with Powered Lift
Model	Lowered Height	Raised Height	Uniform Capacity 0"-36" RH	Uniform Capacity 36"-63" RH	*Uniform Capacity 63"-118" RH	*Uniform Capacity 118"-137" RH	*Uniform Capacity 137"-150" RH	Wt. (lbs)
Adjustable Forks/ Adjustable Support Legs (works with pallets & skids)
SL3-36-AA	2-1/8"	36"	3,000 lbs.	--	--	--	--	1090
SL3-63-AA	2-1/8"	63"	3,000 lbs.	3,000 lbs.	--	--	--	1392
SL-63-AA	2-1/8"	63"	2,000 lbs.	2,000 lbs.	--	--	--	990
SL-118-AA	2-1/8"	118"	2,000 lbs.	2,000 lbs.	1,500 lbs.	--	--	1174
SL-137-AA	2-1/8"	137"	2,000 lbs.	2,000 lbs.	1,500 lbs.	1,000 lbs	--	1265
SL-150-AA	2-1/8"	150"	2,000 lbs.	2,000 lbs.	1,500 lbs.	1000 lbs.	750 lbs.	1266
Fixed Forks Over Fixed Support Legs (works for skids only)
SL-63-FF	3-3/8"	63"	2,000 lbs.	2,000 lbs.	--	--	--	668
SL-118-FF	3-3/8"	118"	2,000 lbs.	2,000 lbs.	1,500 lbs.	--	--	954
Adjustable Stacker W/Power lift, power traction drive
SL-137-AA-PTDS	2-1/8"	137"	2,000 lbs.	2,000 lbs.	1,500 lbs	1,000 lbs	--	1378
*Uniform Capacity at specific raised height
