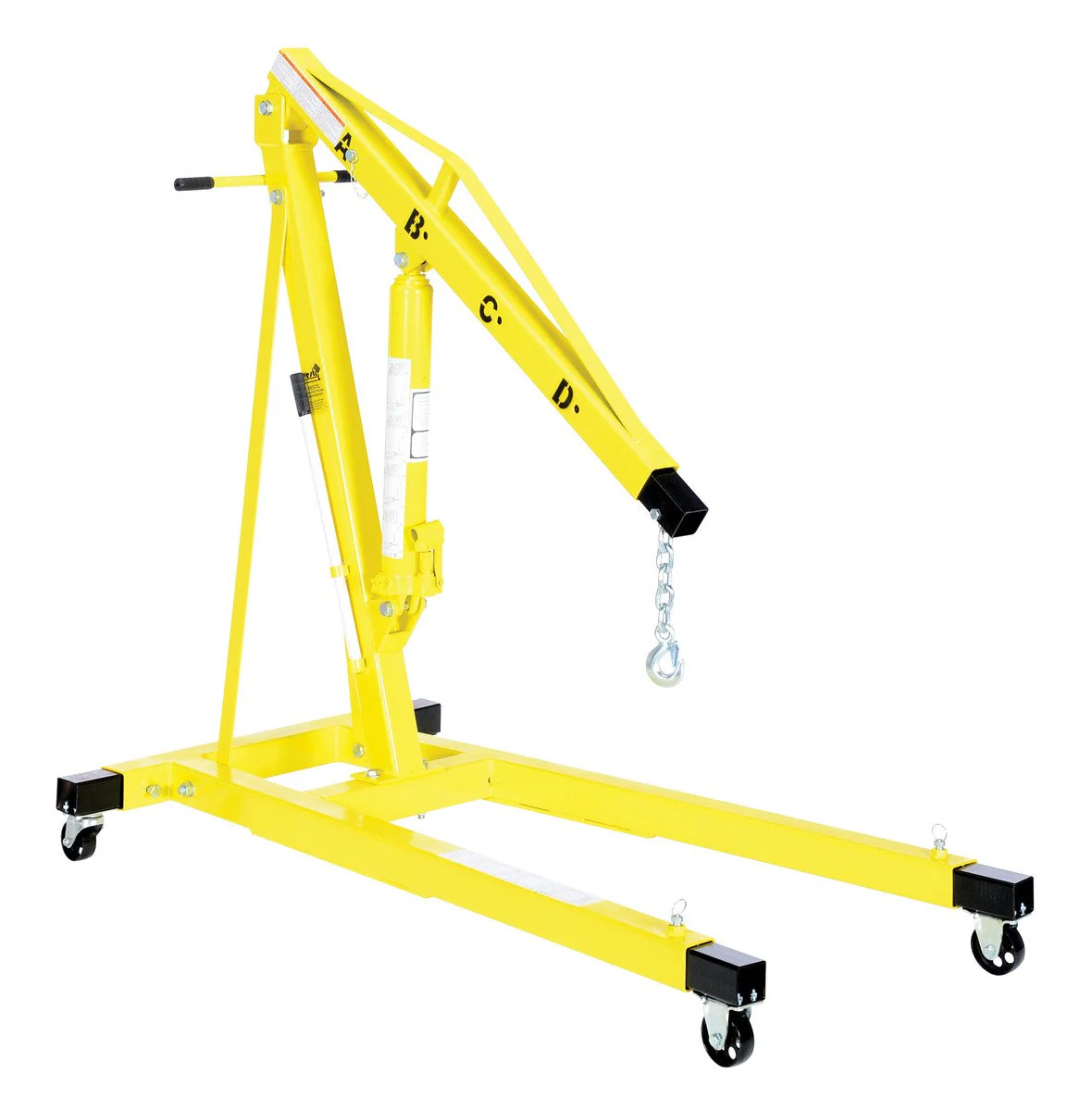

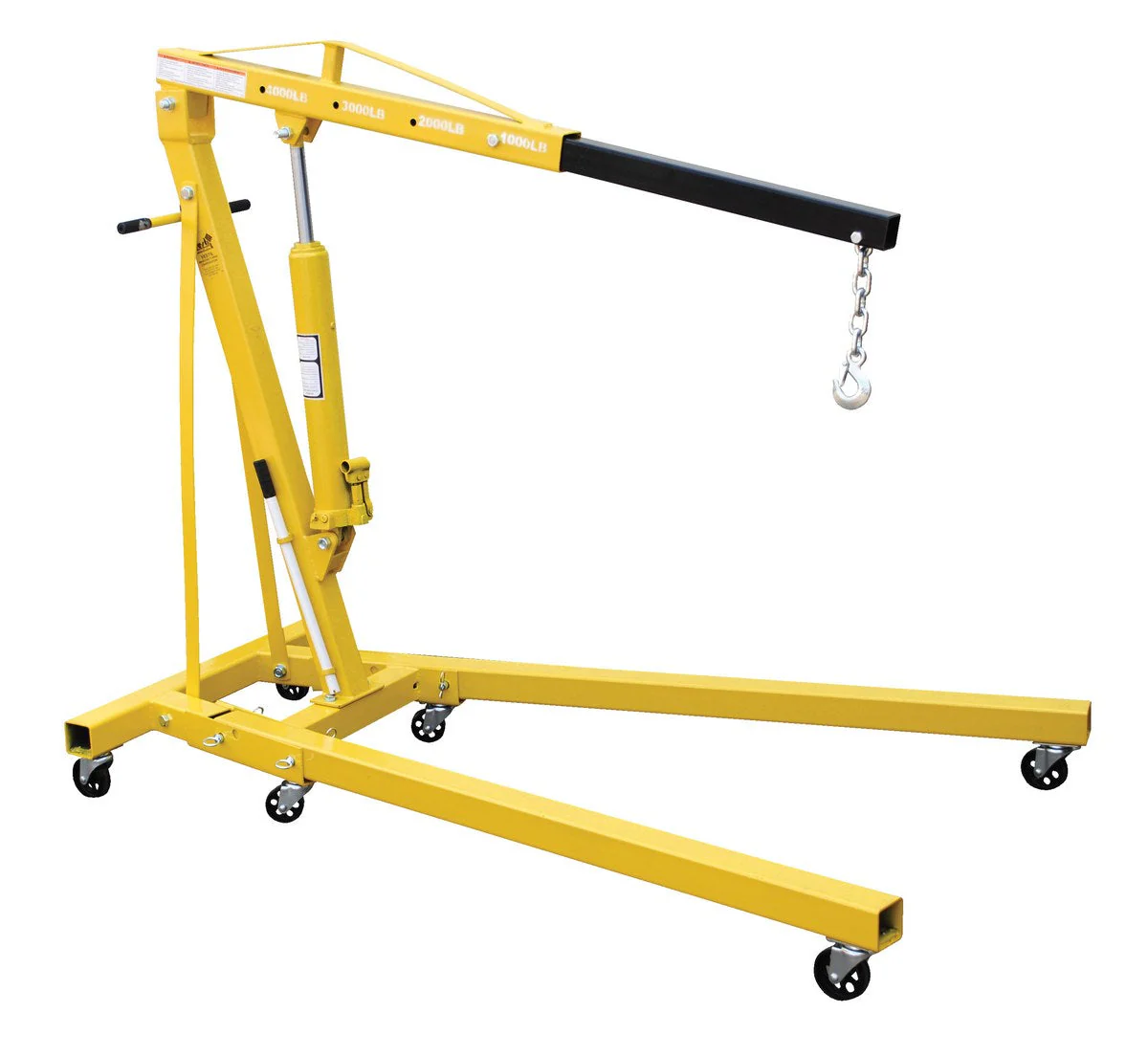

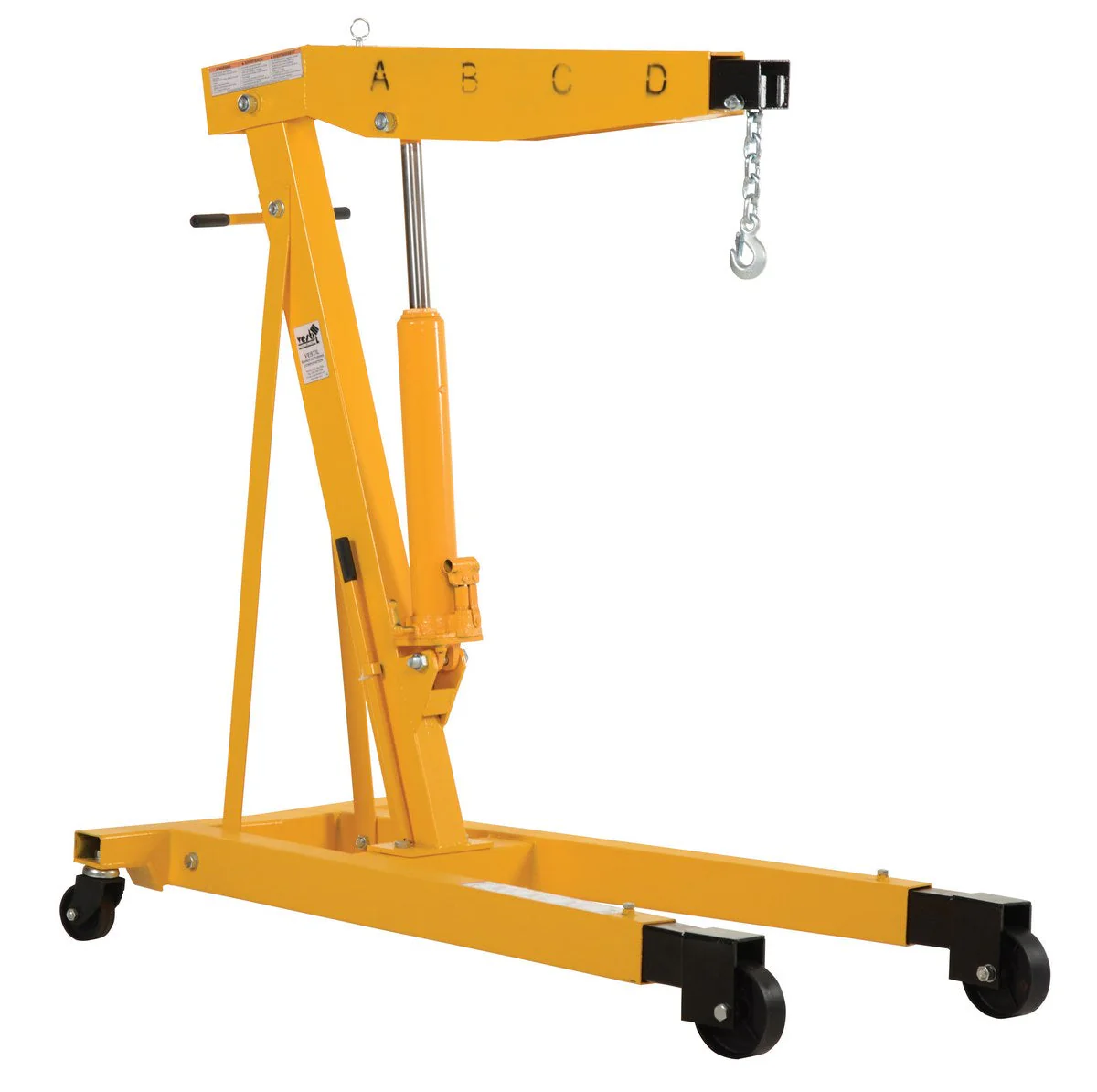

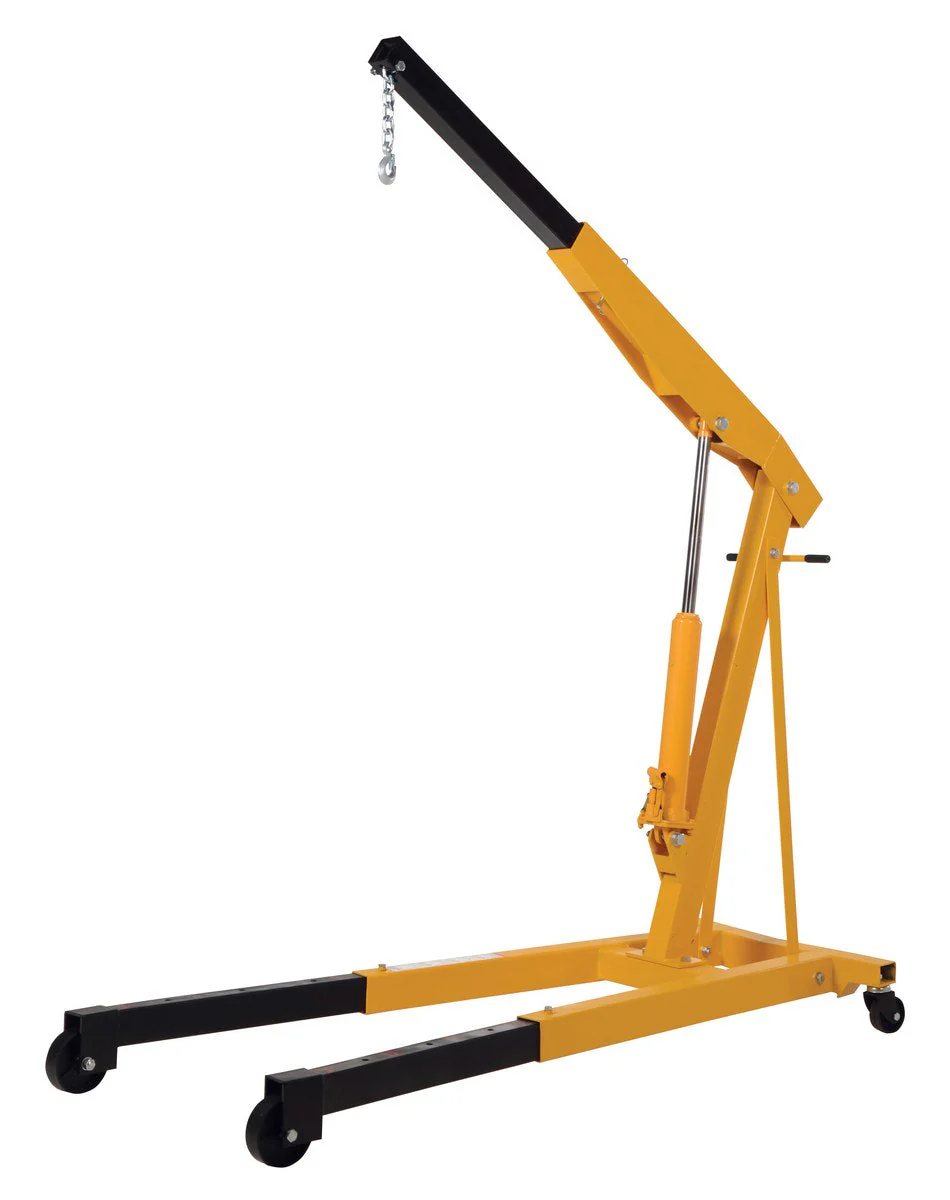

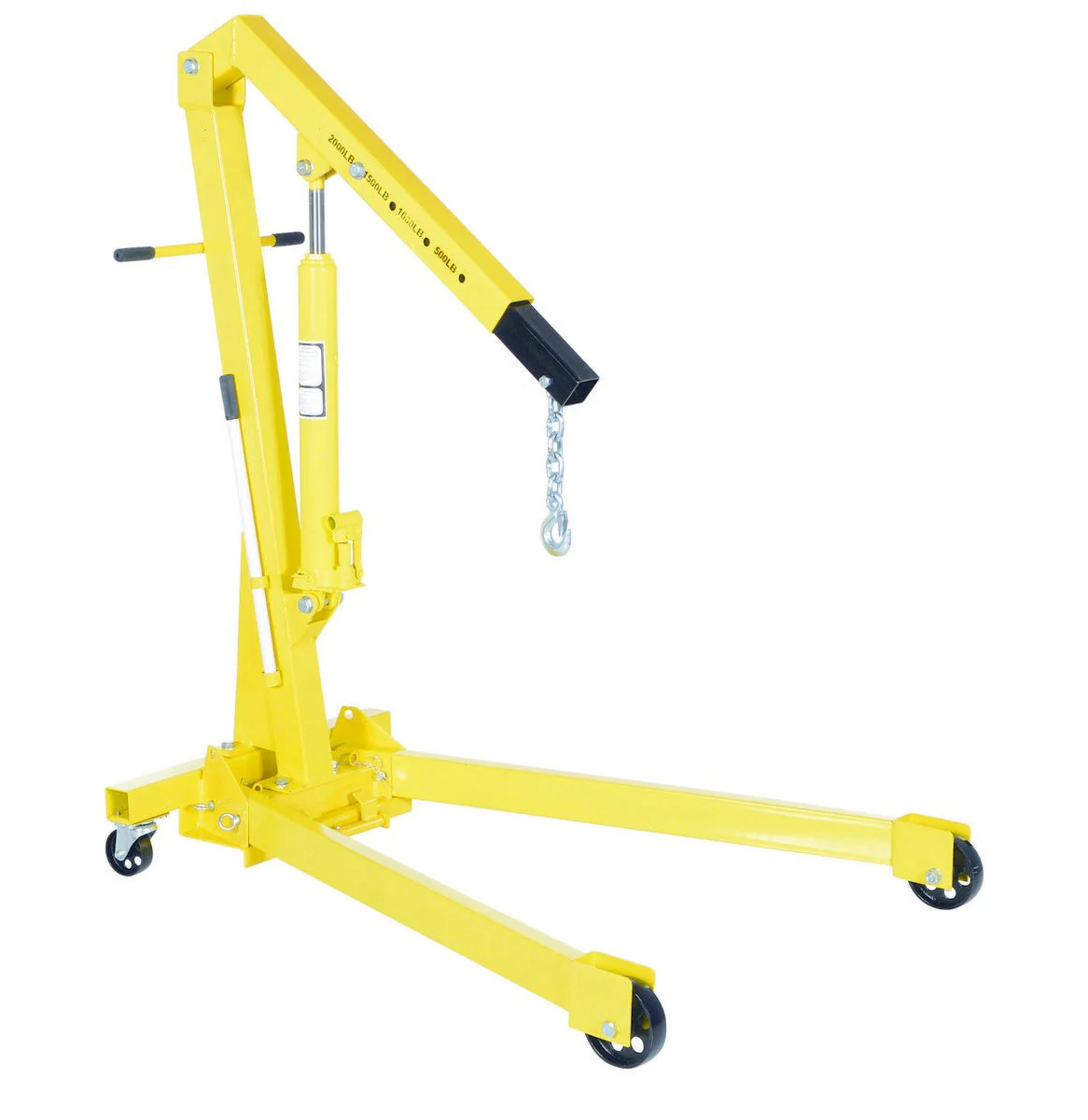

Vestil Shop Crane Engine Hoist

Vestil Shop Crane Engine Hoist

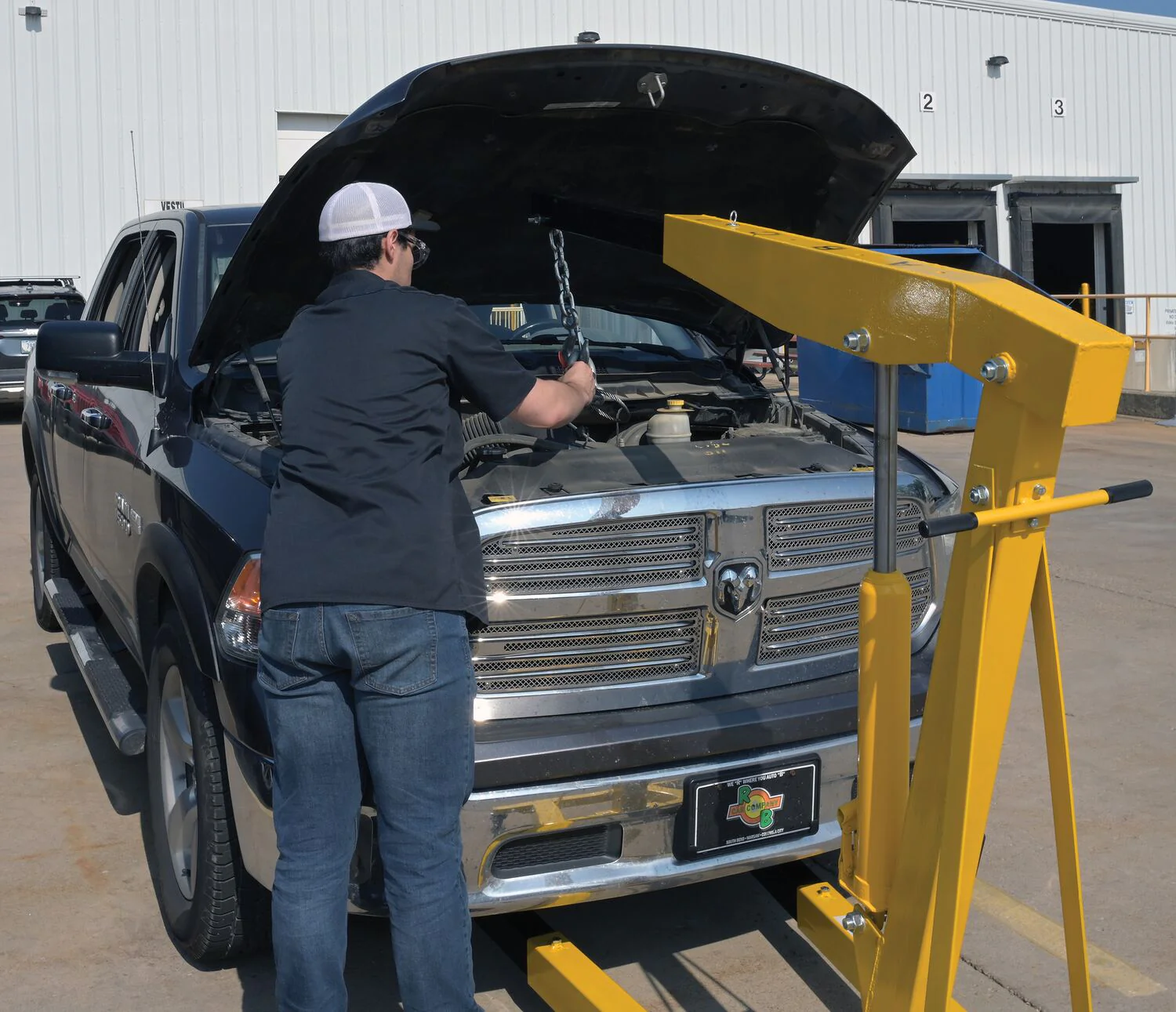

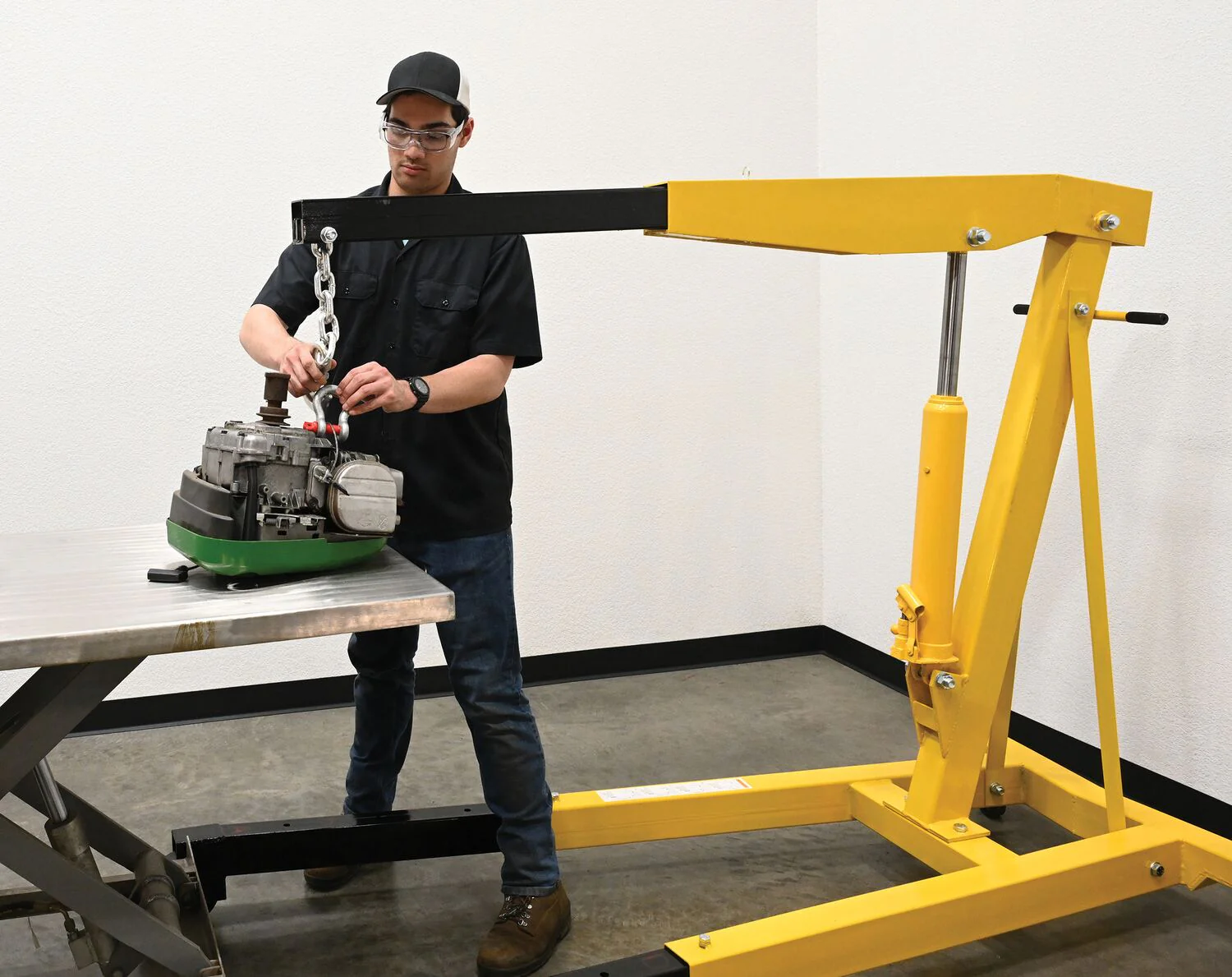

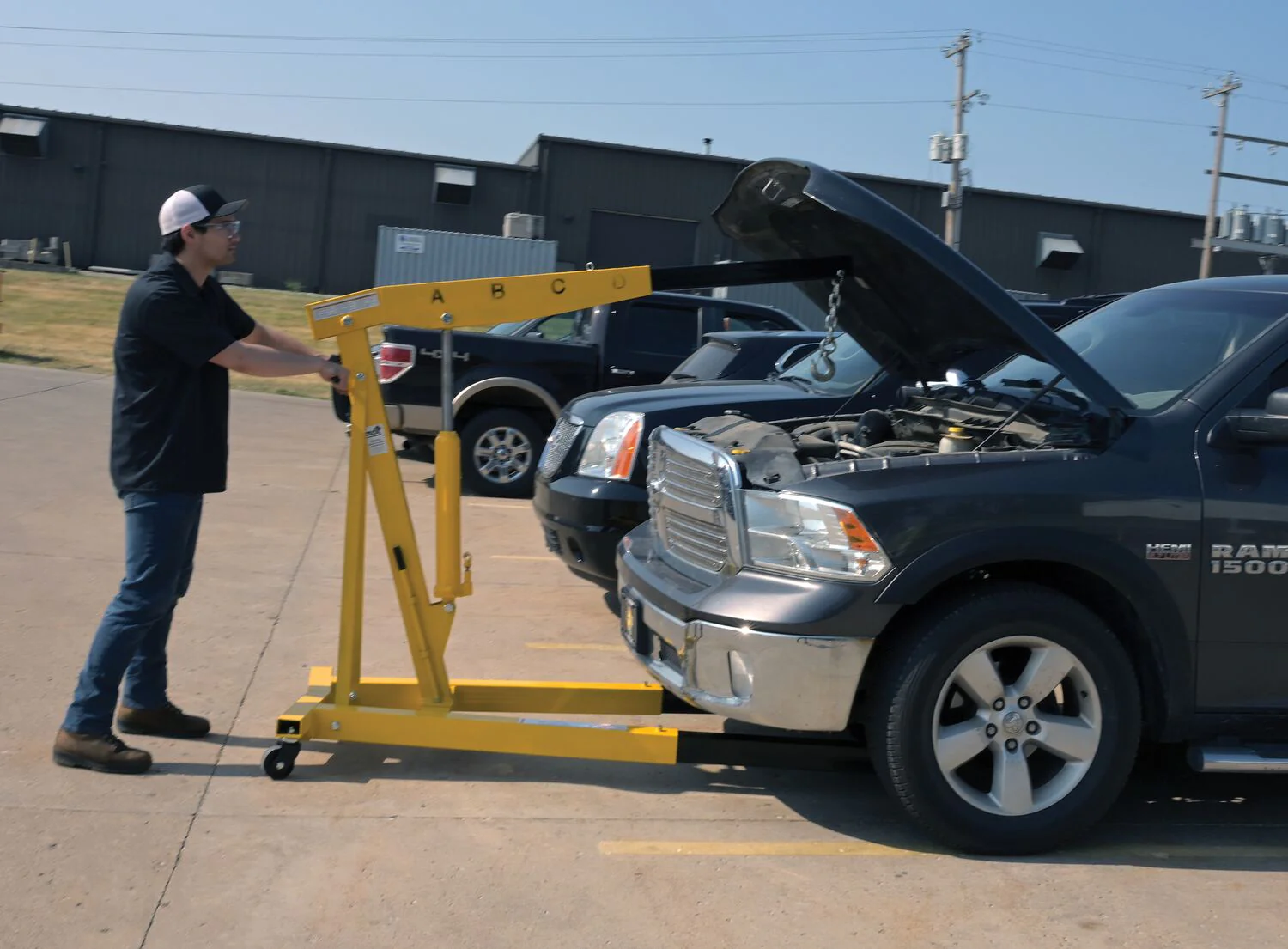

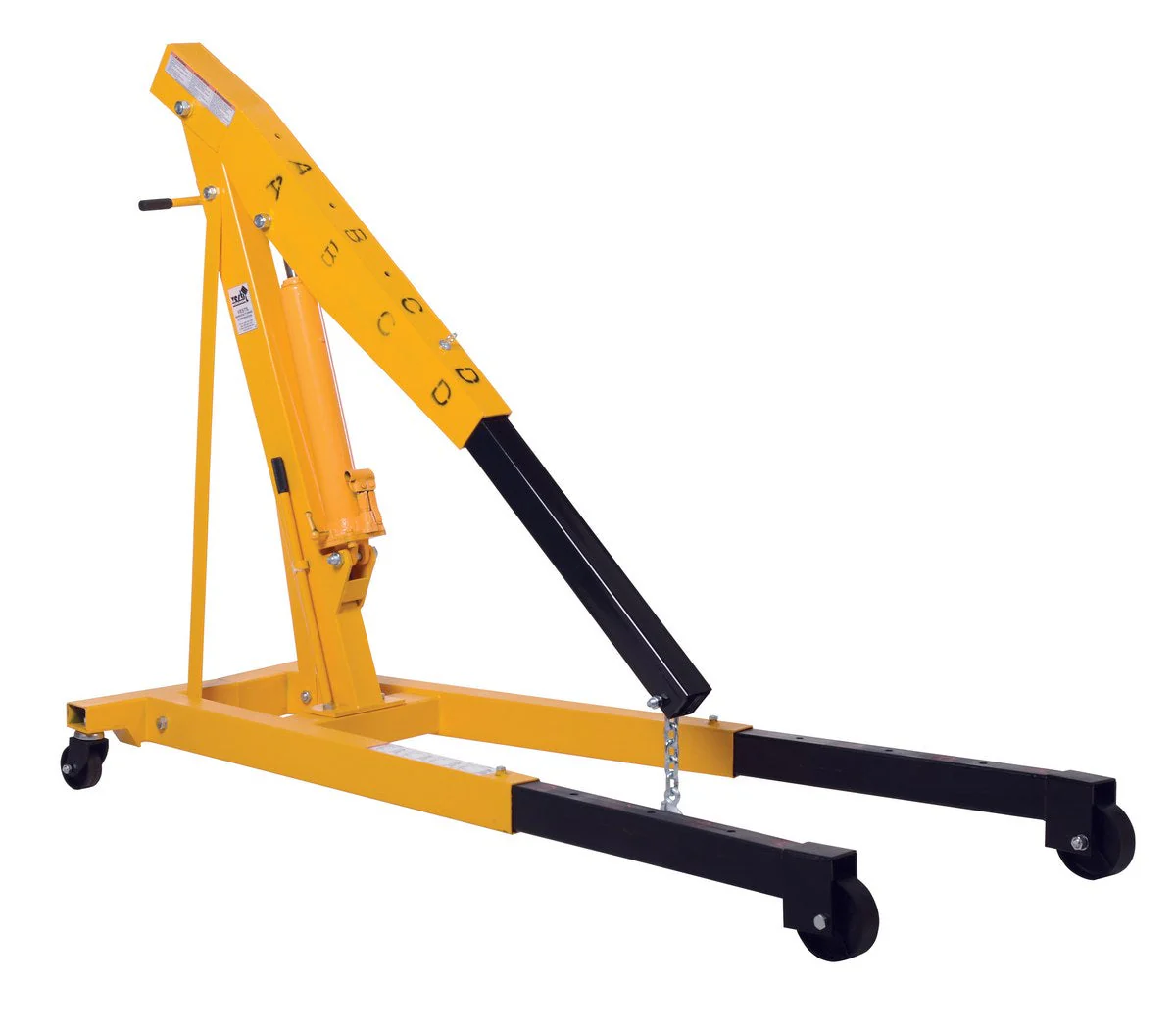

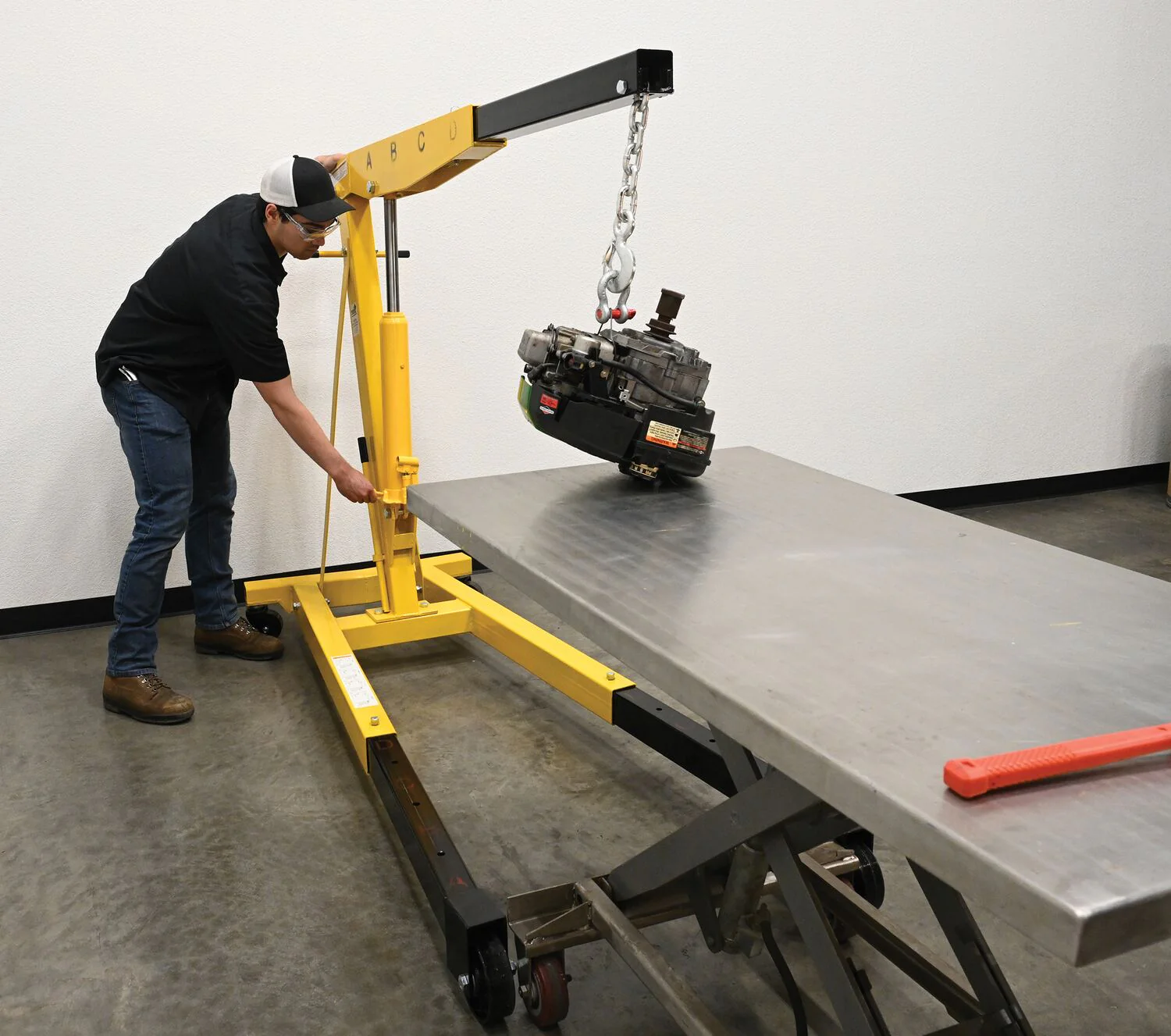

Ā TheĀ Vestil Shop Crane is the ultimate Engine Hoist for general lifting and maintenance of engines and other heavy loads. Choose fixed legs (foldable design) or telescopic legs (non-foldable design).

Multiple hook positions provide different working load limits. Powered by an integrated hydraulic cylinder (no accessories required for operation).

Shop Crane Engine Hoists
Model Image Capacity
(lbs)		 Boom
Length		 Boom
Height		 Wt.
(lbs)

Collapsible for Storage (33-1/2"W x 44"L x 60-1/2"H) -- (Foldable Legs)
EHN-20-C 2,000
1,500
1,000
500		 36-5/8"
40"
43-3/4"
47"		 20-1/2"--76"
17-1/2"--78"
14-1/2"--80"
10-1/2"--82"		 207
EHN-40-C 4,000
3,000
2,000
1,000		 39-1/4"
46-1/4"
53-1/4"
60-1/2"		 21"--85-3/4"
15"--91-1/4"
9"--96-9/16"
3"--102"		 238
Fixed - will not collapse for storage- (Telescopic Legs)
EHN-40-T 4,000
3,000
2,000
1,000		 49"
58"
67"
76"		 8-7/8"--72"
3-1/2"--77"
0"--82"
0"--87"		 277
EHN-60-T 6,000
4,000
3,000
2,000		 51-7/8"
60"
68"
76-1/4"		 22"--84"
16-11/16"--88-3/16"
11-1/2"--92-3/8"
6-1/4"--96-9/16"		 354
Select Capacity x Leg Type
From $159.07

Original: $454.50

-65%
Vestil Shop Crane Engine Hoistā€”

$454.50

$159.07

Product Information

Shipping & Returns

Description

Ā TheĀ Vestil Shop Crane is the ultimate Engine Hoist for general lifting and maintenance of engines and other heavy loads. Choose fixed legs (foldable design) or telescopic legs (non-foldable design).

Multiple hook positions provide different working load limits. Powered by an integrated hydraulic cylinder (no accessories required for operation).

Shop Crane Engine Hoists
Model Image Capacity
(lbs)		 Boom
Length		 Boom
Height		 Wt.
(lbs)

Collapsible for Storage (33-1/2"W x 44"L x 60-1/2"H) -- (Foldable Legs)
EHN-20-C 2,000
1,500
1,000
500		 36-5/8"
40"
43-3/4"
47"		 20-1/2"--76"
17-1/2"--78"
14-1/2"--80"
10-1/2"--82"		 207
EHN-40-C 4,000
3,000
2,000
1,000		 39-1/4"
46-1/4"
53-1/4"
60-1/2"		 21"--85-3/4"
15"--91-1/4"
9"--96-9/16"
3"--102"		 238
Fixed - will not collapse for storage- (Telescopic Legs)
EHN-40-T 4,000
3,000
2,000
1,000		 49"
58"
67"
76"		 8-7/8"--72"
3-1/2"--77"
0"--82"
0"--87"		 277
EHN-60-T 6,000
4,000
3,000
2,000		 51-7/8"
60"
68"
76-1/4"		 22"--84"
16-11/16"--88-3/16"
11-1/2"--92-3/8"
6-1/4"--96-9/16"		 354
