Vestil Pallet Racking
Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.
|

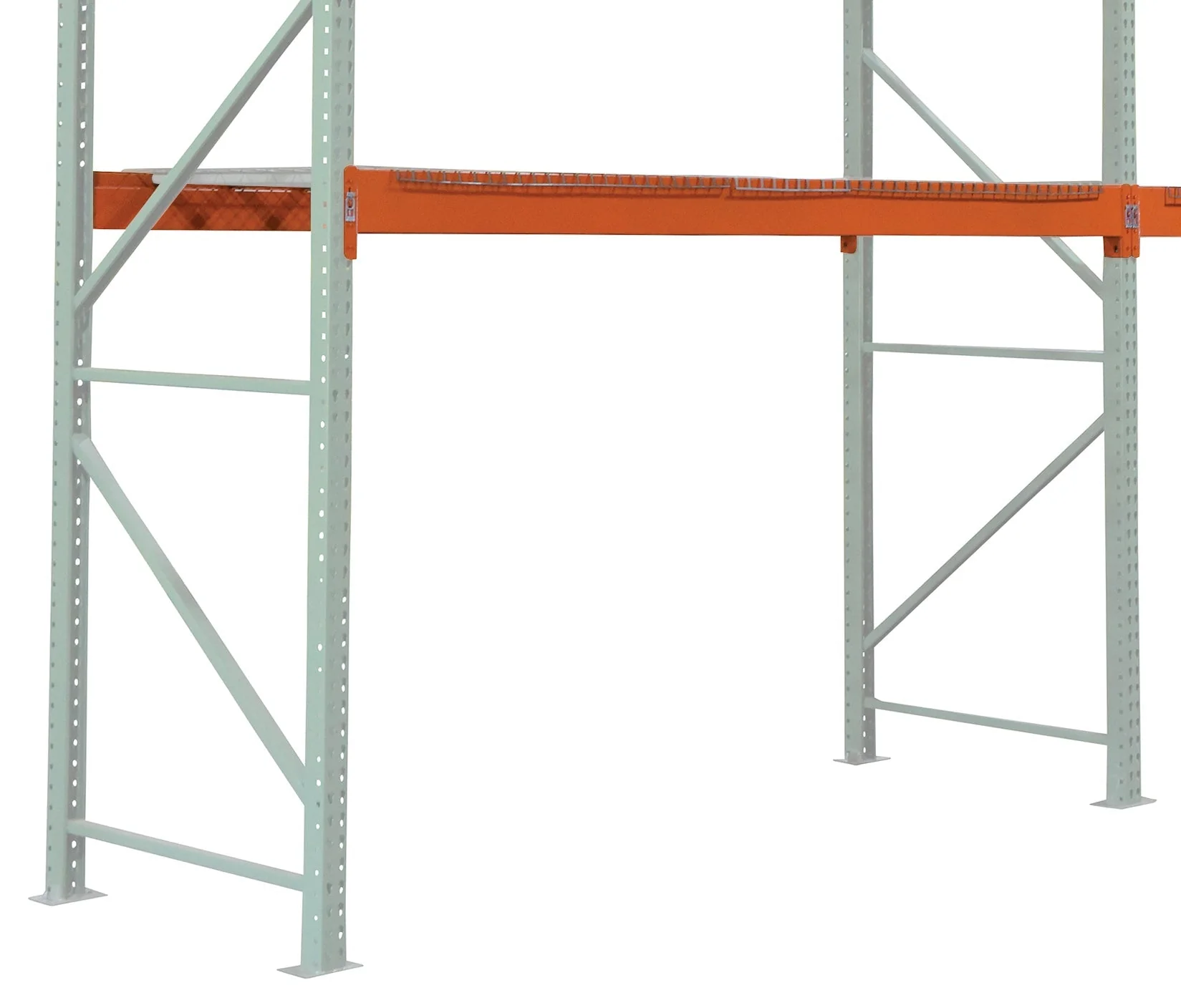

Pallet Racking |
||||
|

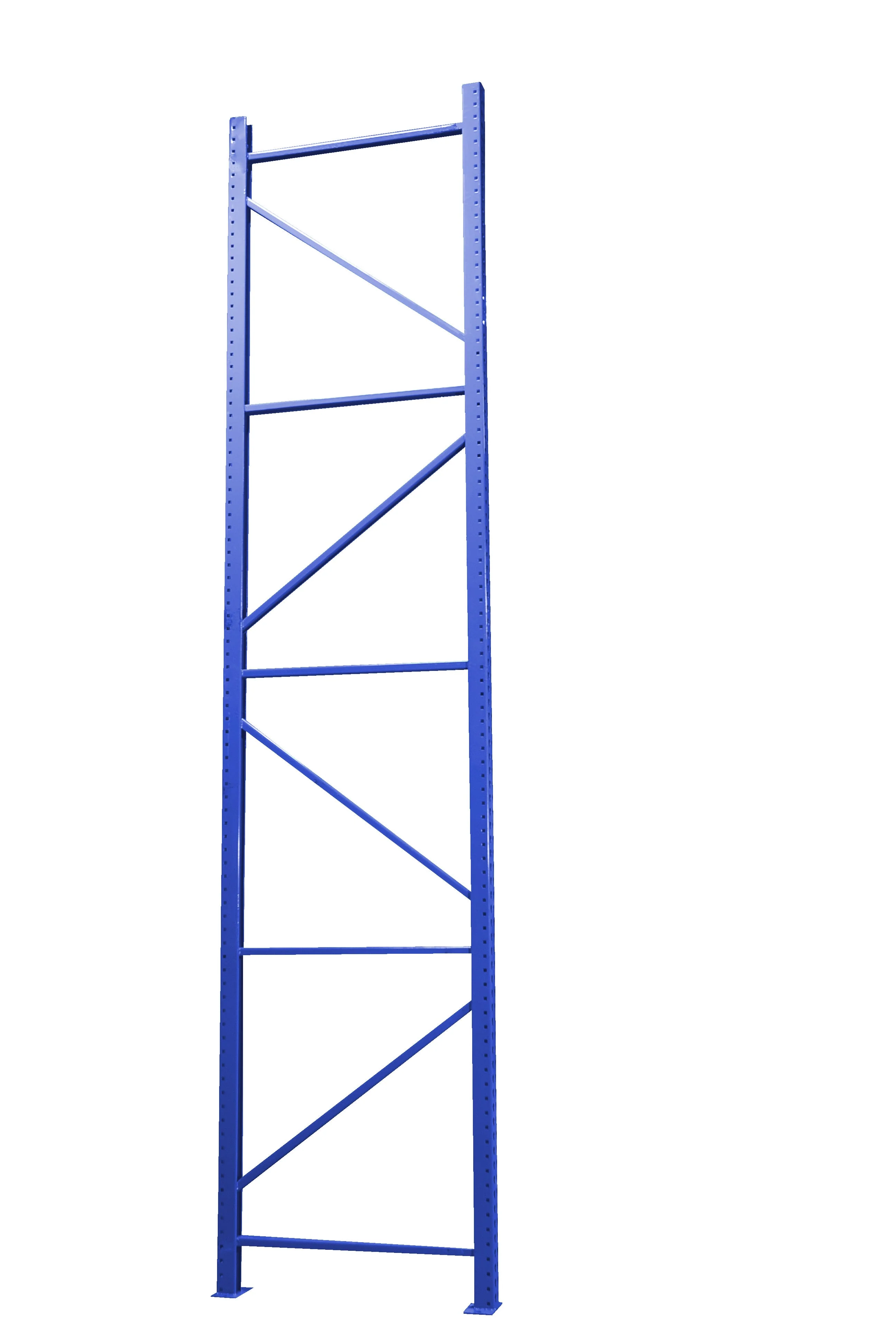

Frame |
||||
| Model | Frame Height |
Frame Depth |
Capacity Per Each Upright (lbs) |
Wt. (lbs) |
| PRTD-10-42-19 | 120" | 42" | 19,380 | 139 |
| PRTD-10-42-24 | 120" | 42" | 24,000 | 171 |
| PRTD-12-42-19 | 144" | 42" | 19,380 | 162 |
| PRTD-12-42-24 | 144" | 42" | 24,000 | 165 |
| PRTD-14-42-19 | 168" | 42" | 19,380 | 173 |
| PRTD-14-42-24 | 168" | 42" | 24,000 | 187 |
| PRTD-16-42-19 | 192" | 42" | 19,380 | 183 |
| PRTD-16-42-24 | 192" | 42" | 24,000 | 226 |
| PRTD-18-2-24 | 216" | 42" | 24,000 | 180 |
|
Step Beam |
||||
| Model | Beam Height |
Beam Length |
Capacity Per Pair (lbs) |
Wt. (lbs) |
| BEAM-S-850 | 6" | 96" | 5,000 | 66 |
| BEAM-S-870 | 6" | 96" | 7,000 | 70 |
| BEAM-S-960 | 6" | 108" | 6,000 | 78 |
| BEAM-S-970 | 6" | 108" | 7,000 | 82 |
| BEAM-S-1050 | 6" | 120" | 5,000 | 75 |
| BEAM-S-1070 | 6" | 120" | 7,000 | 82 |
| BEAM-S-1250 | 6" | 144" | 5,000 | 105 |
| BEAM-S-1260 | 6" | 144" | 6,000 | 115 |
|

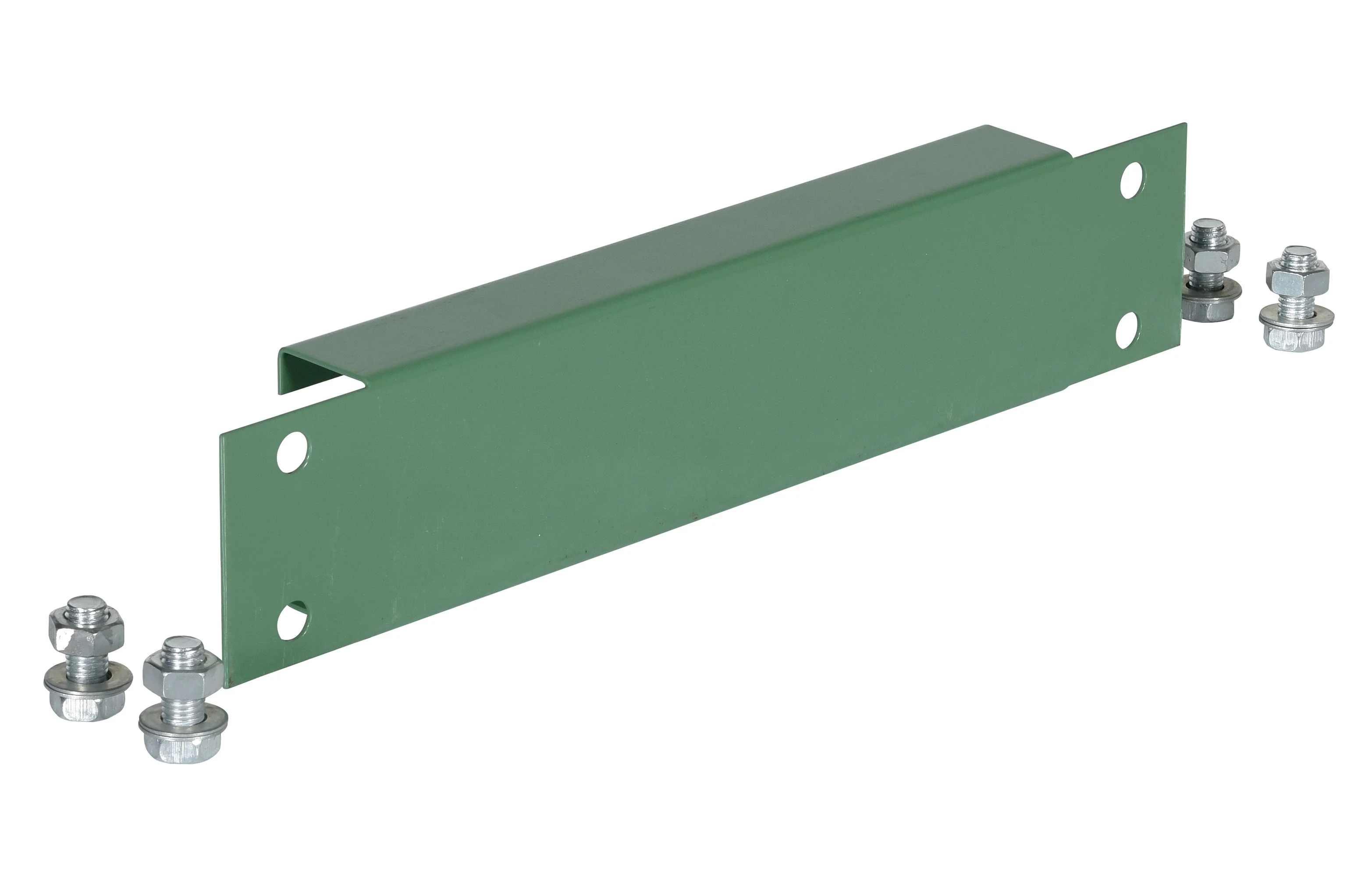

Frame Spacer - Separates Back To Back Frames |
||||
| Model | Frame Spacer | Wt. (lbs) |
||
| FSR-6 | 6" | 2 | ||
| FSR-12 | 12" | 2 | ||
Select Type
Select Length (ft.)
Select Capacity (lbs.)
From $5.05
Original: $14.42
-65%Vestil Pallet Rackingā
$14.42
$5.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Pallet Racking solves the storage and retrieval needs faced by most industries today. Adaptability to specific layout installations is just one added feature. Units are sold 'Each'.
|
Pallet Racking |
||||
|
Frame |
||||
| Model | Frame Height |
Frame Depth |
Capacity Per Each Upright (lbs) |
Wt. (lbs) |
| PRTD-10-42-19 | 120" | 42" | 19,380 | 139 |
| PRTD-10-42-24 | 120" | 42" | 24,000 | 171 |
| PRTD-12-42-19 | 144" | 42" | 19,380 | 162 |
| PRTD-12-42-24 | 144" | 42" | 24,000 | 165 |
| PRTD-14-42-19 | 168" | 42" | 19,380 | 173 |
| PRTD-14-42-24 | 168" | 42" | 24,000 | 187 |
| PRTD-16-42-19 | 192" | 42" | 19,380 | 183 |
| PRTD-16-42-24 | 192" | 42" | 24,000 | 226 |
| PRTD-18-2-24 | 216" | 42" | 24,000 | 180 |
|
Step Beam |
||||
| Model | Beam Height |
Beam Length |
Capacity Per Pair (lbs) |
Wt. (lbs) |
| BEAM-S-850 | 6" | 96" | 5,000 | 66 |
| BEAM-S-870 | 6" | 96" | 7,000 | 70 |
| BEAM-S-960 | 6" | 108" | 6,000 | 78 |
| BEAM-S-970 | 6" | 108" | 7,000 | 82 |
| BEAM-S-1050 | 6" | 120" | 5,000 | 75 |
| BEAM-S-1070 | 6" | 120" | 7,000 | 82 |
| BEAM-S-1250 | 6" | 144" | 5,000 | 105 |
| BEAM-S-1260 | 6" | 144" | 6,000 | 115 |
|
Frame Spacer - Separates Back To Back Frames |
||||
| Model | Frame Spacer | Wt. (lbs) |
||
| FSR-6 | 6" | 2 | ||
| FSR-12 | 12" | 2 | ||
