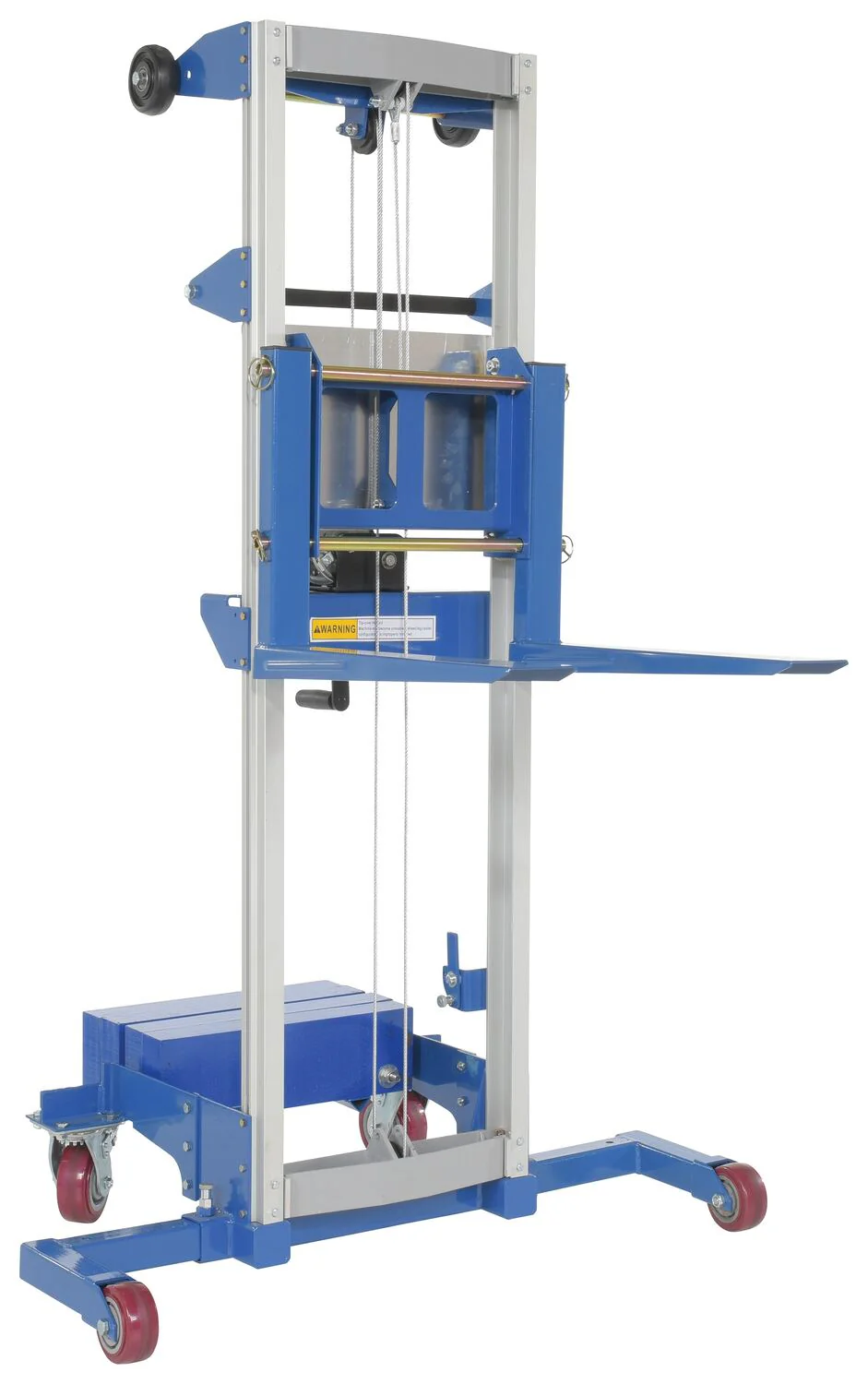

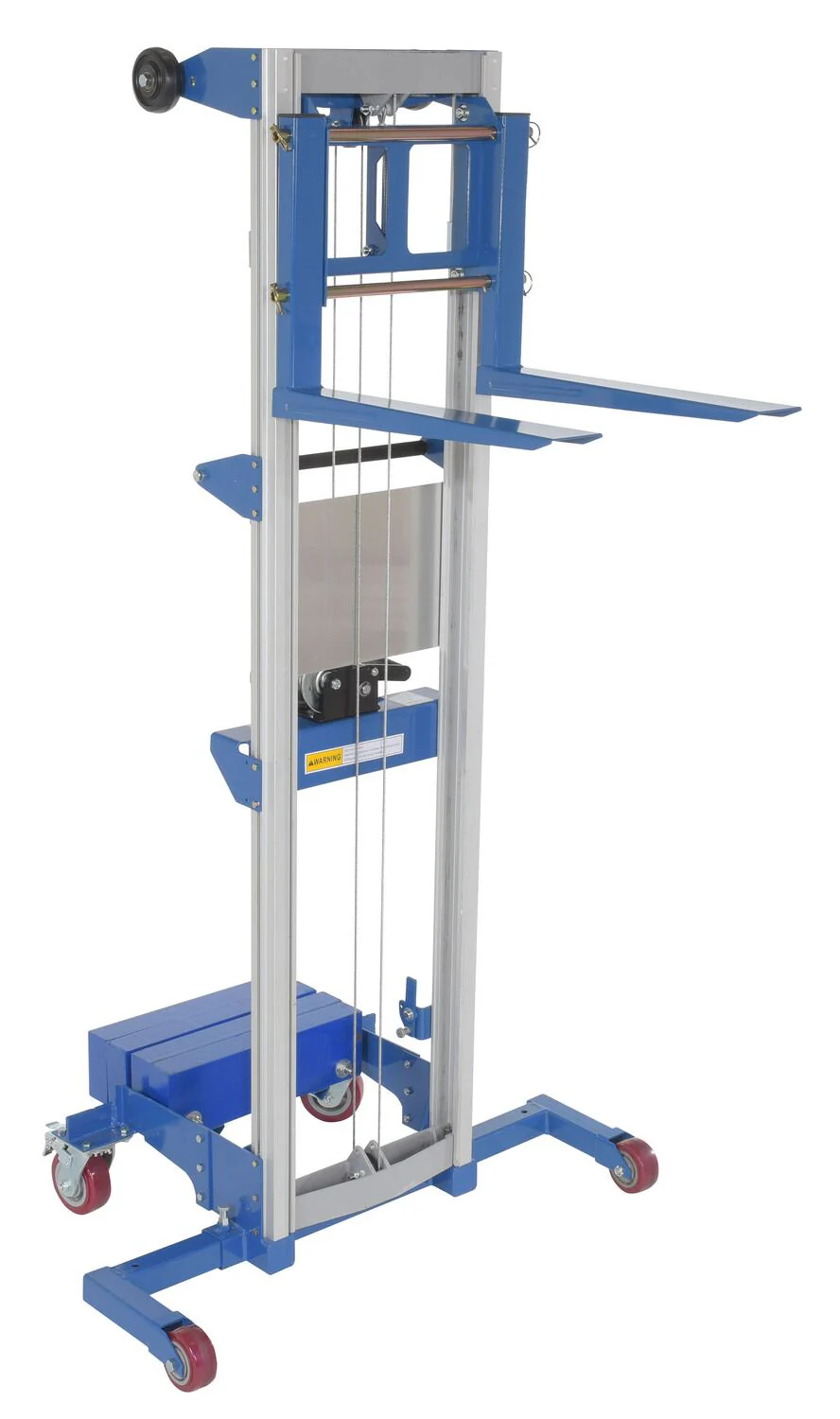

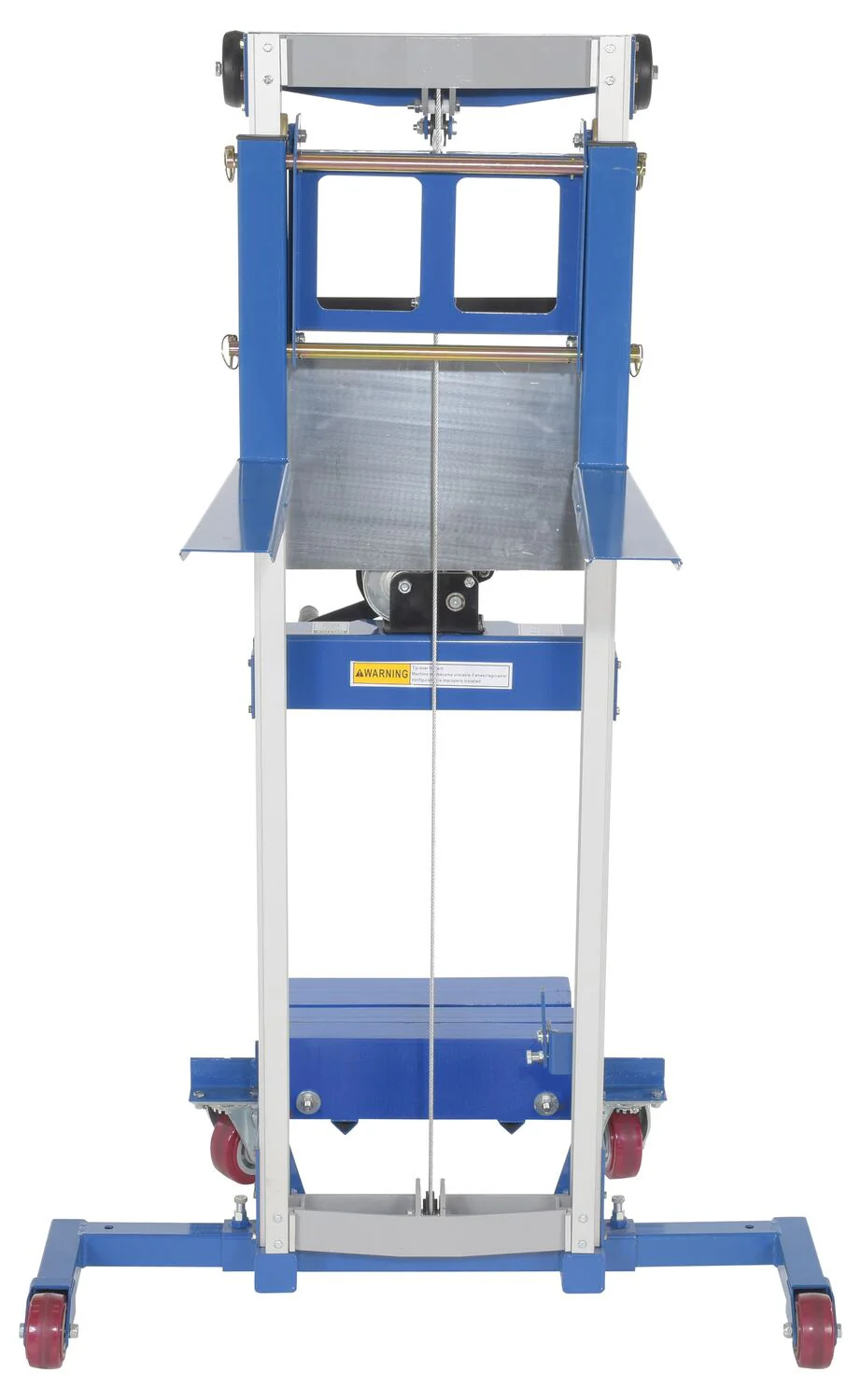

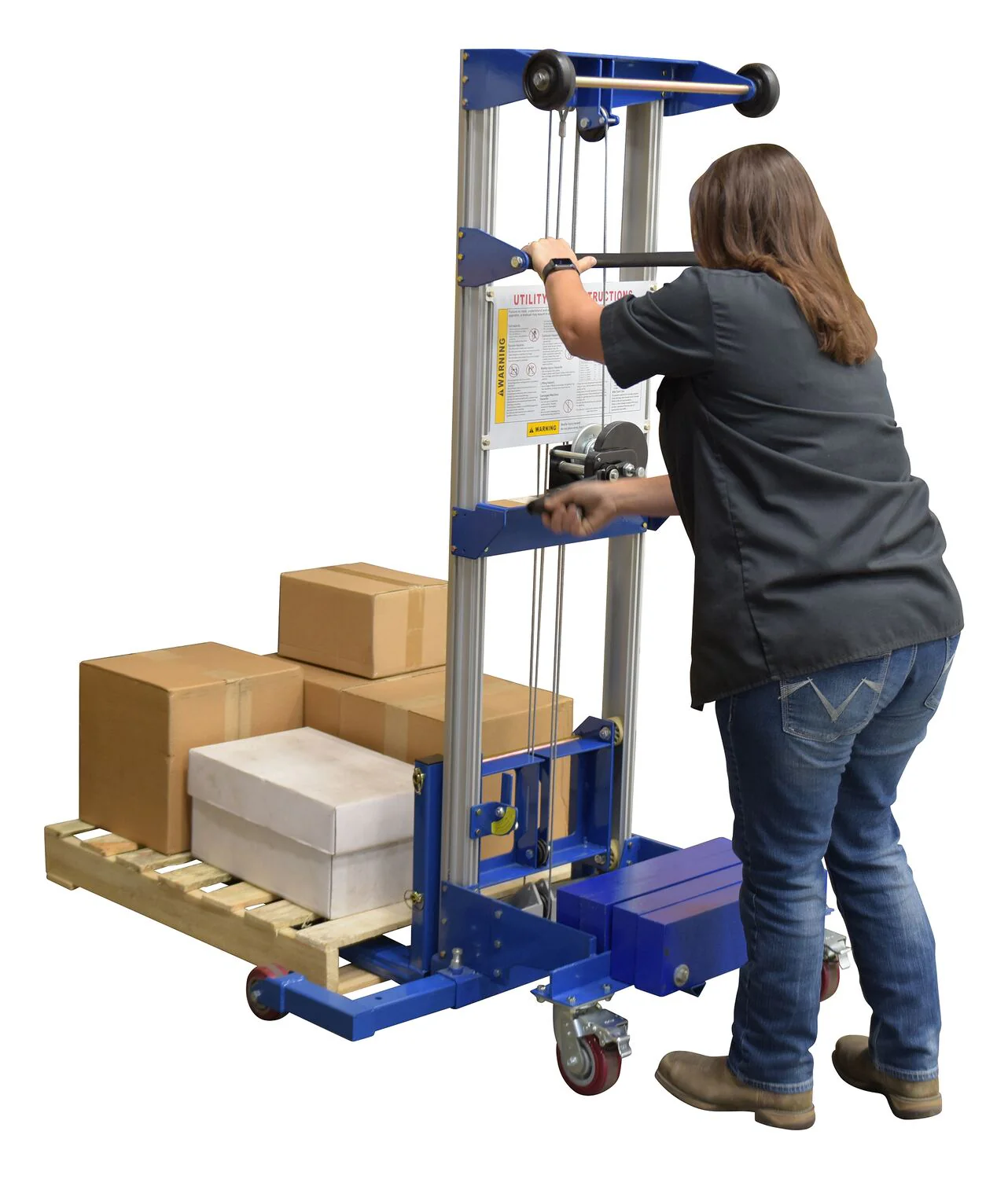

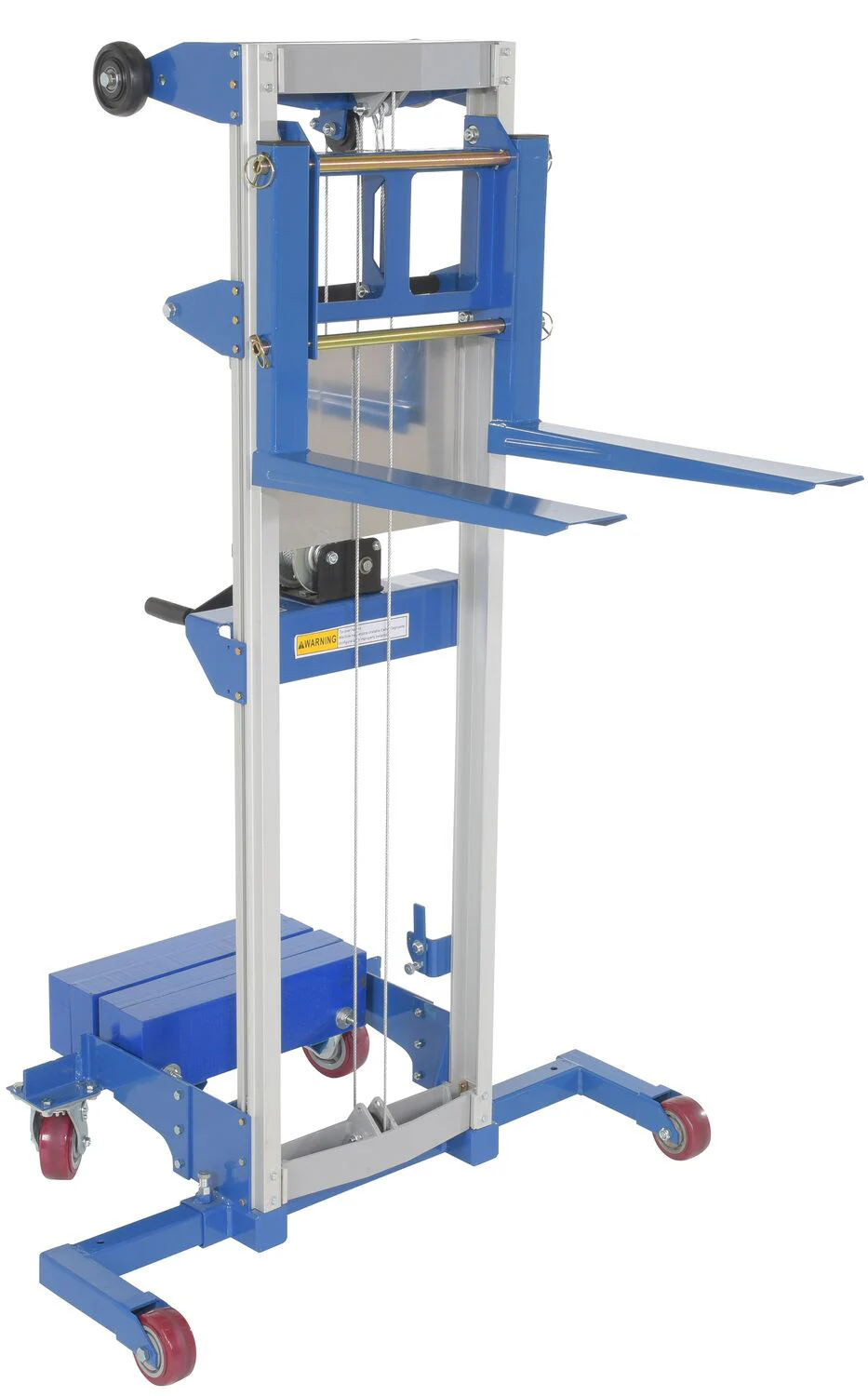

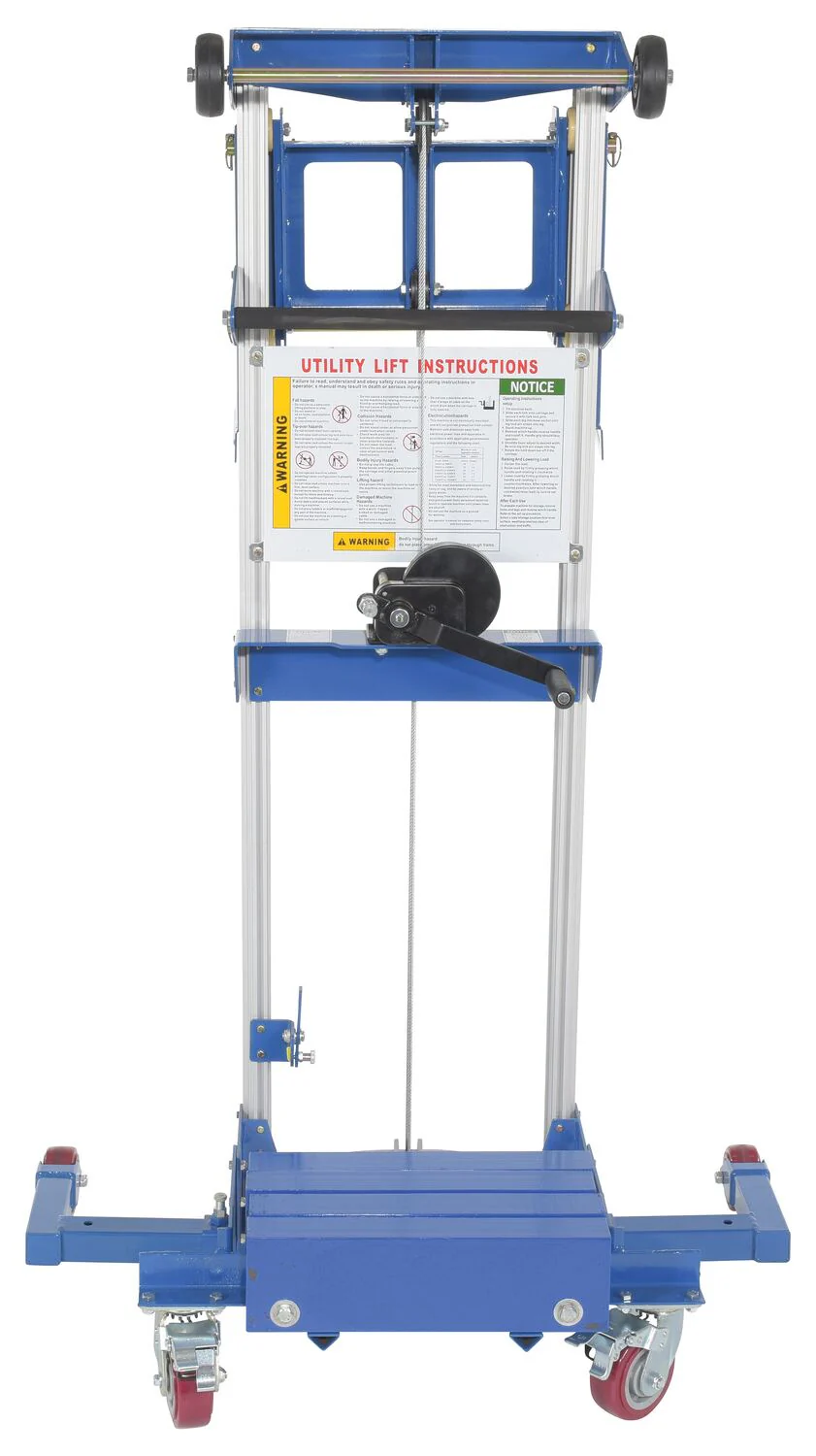

Vestil Lightweight Winch Stacker Truck

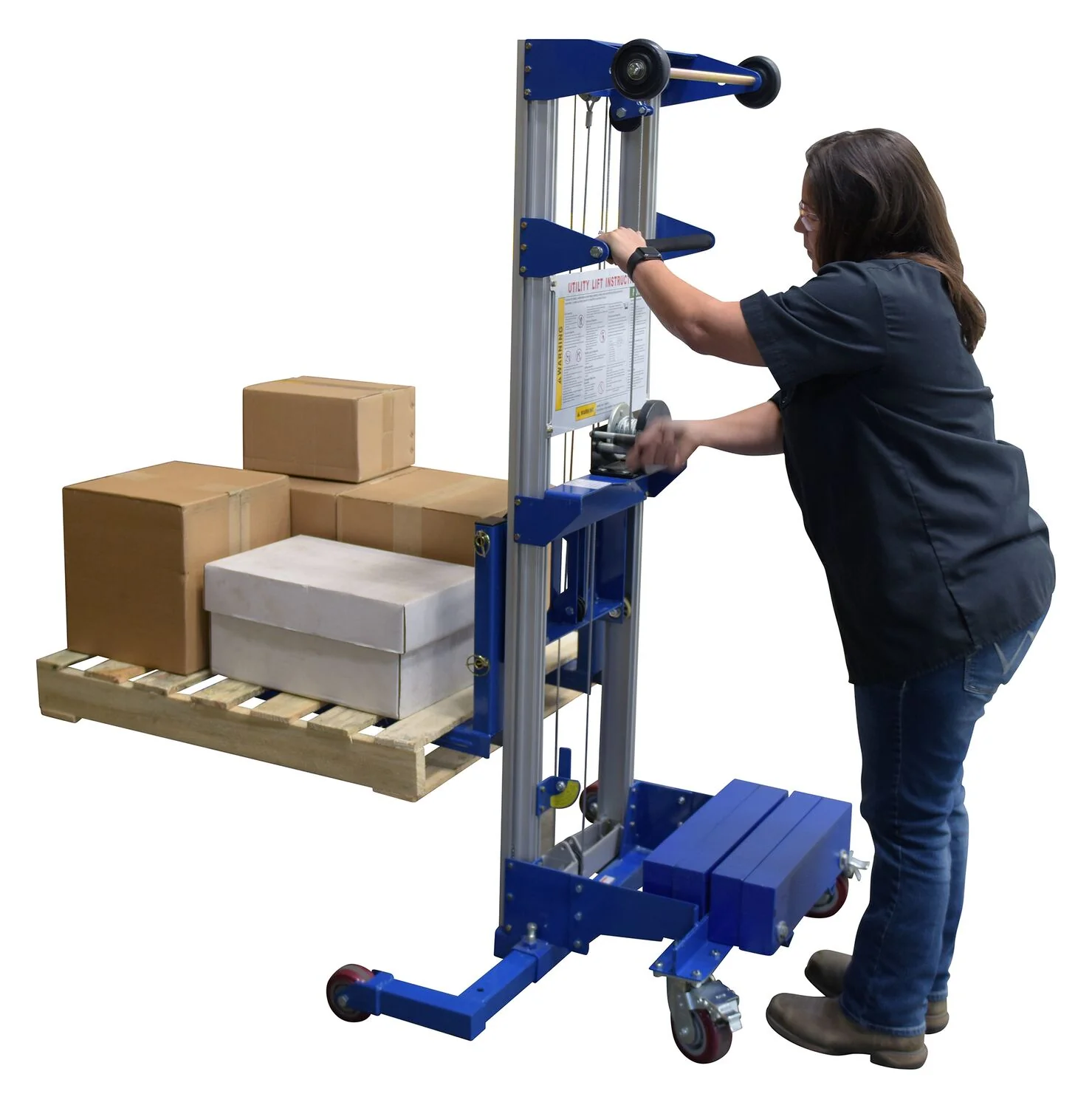

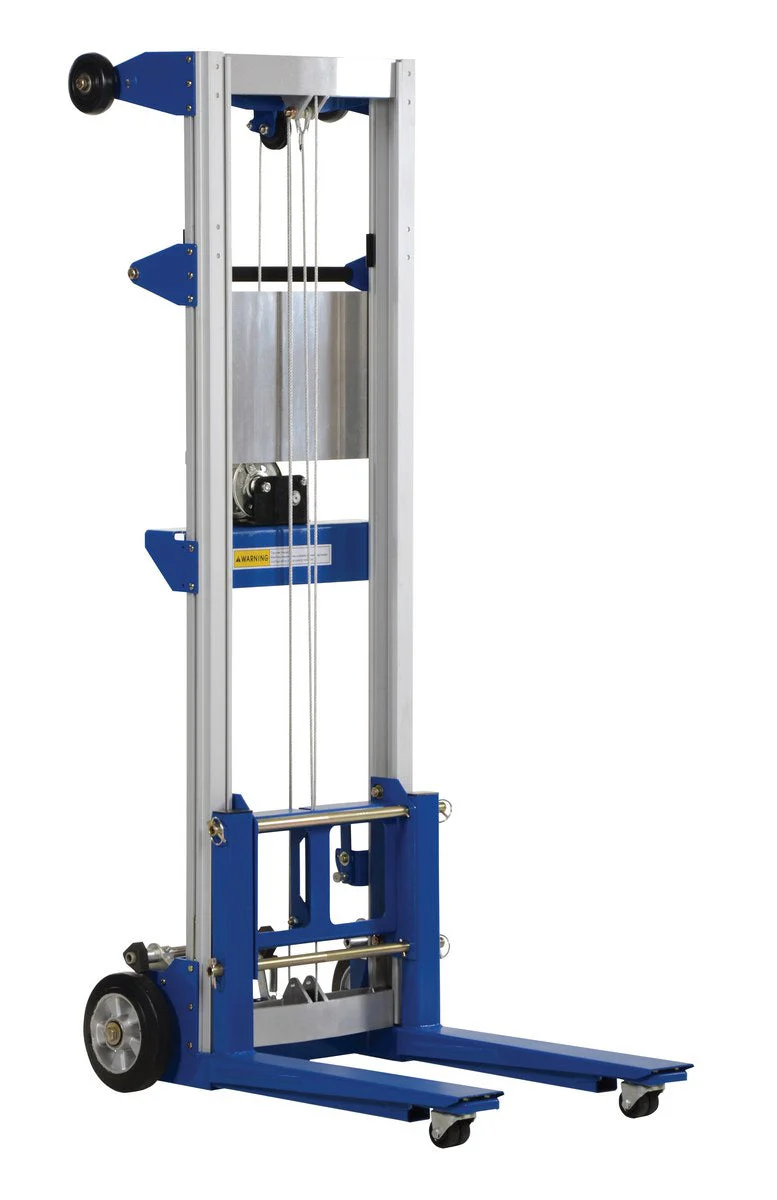

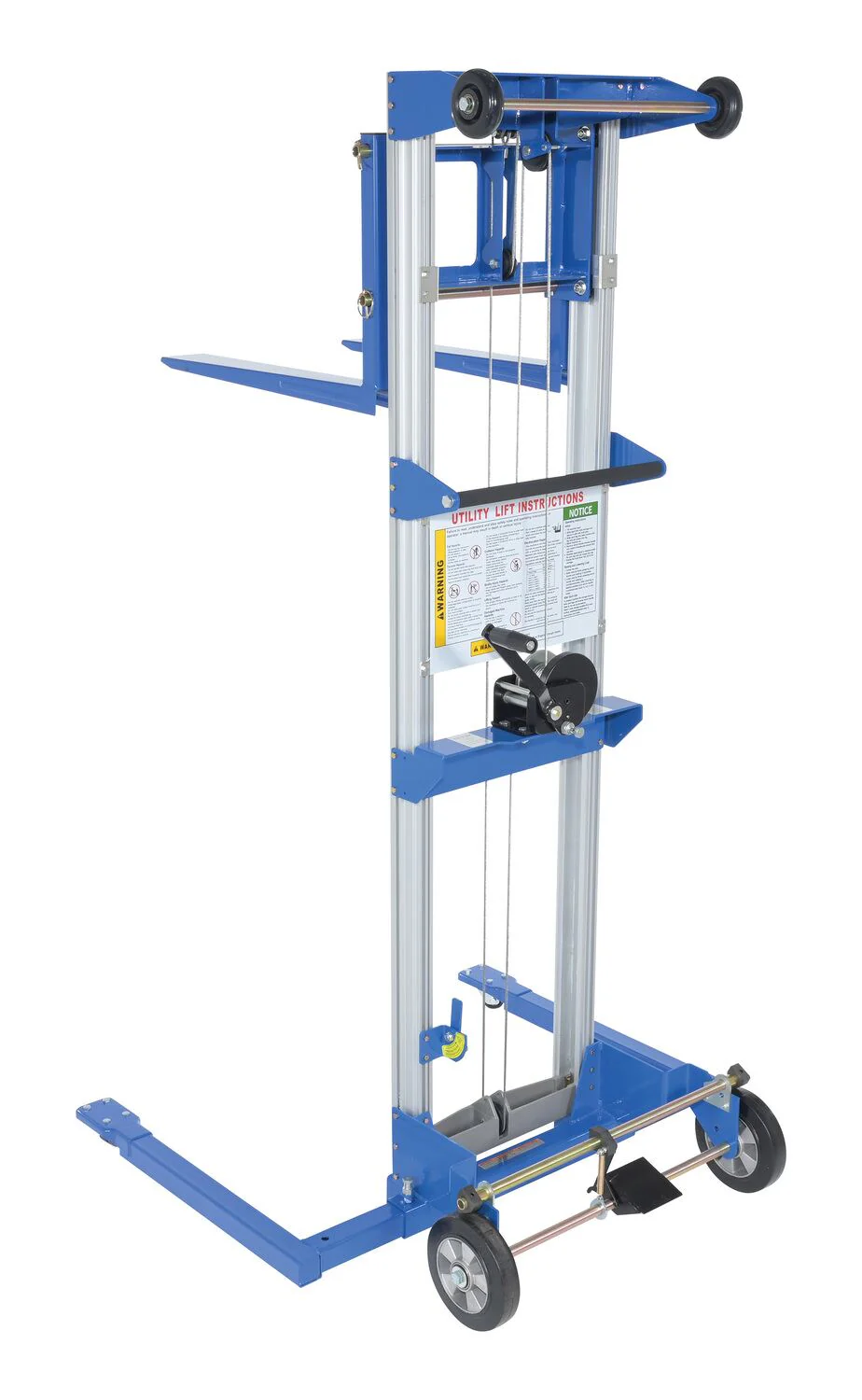

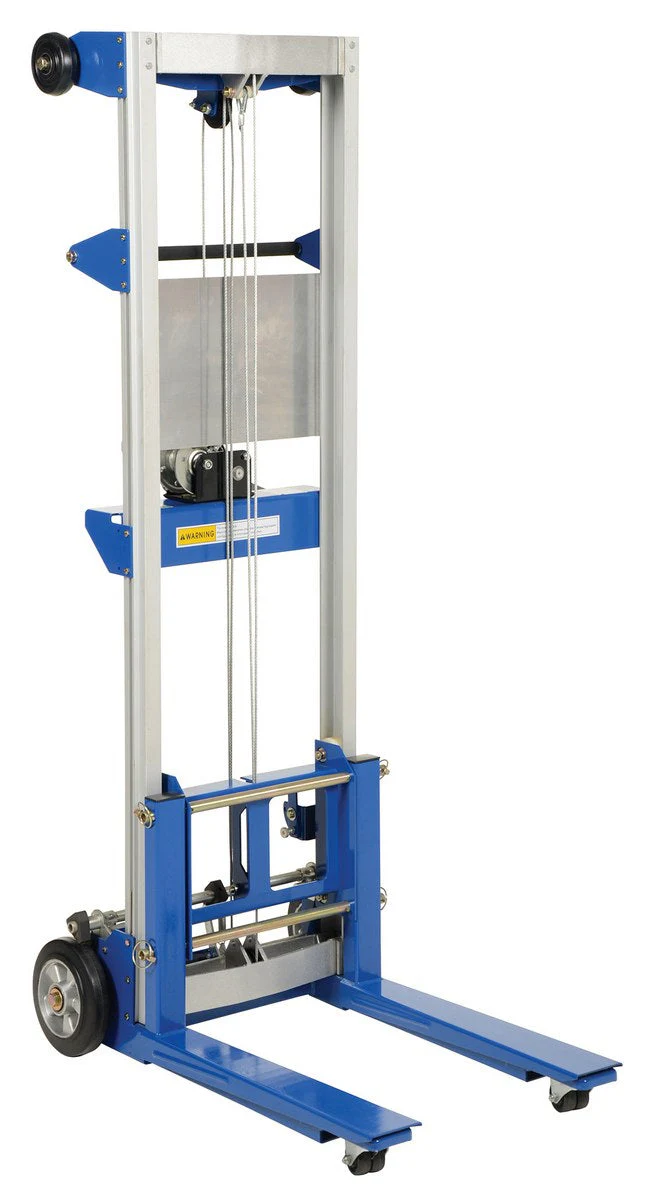

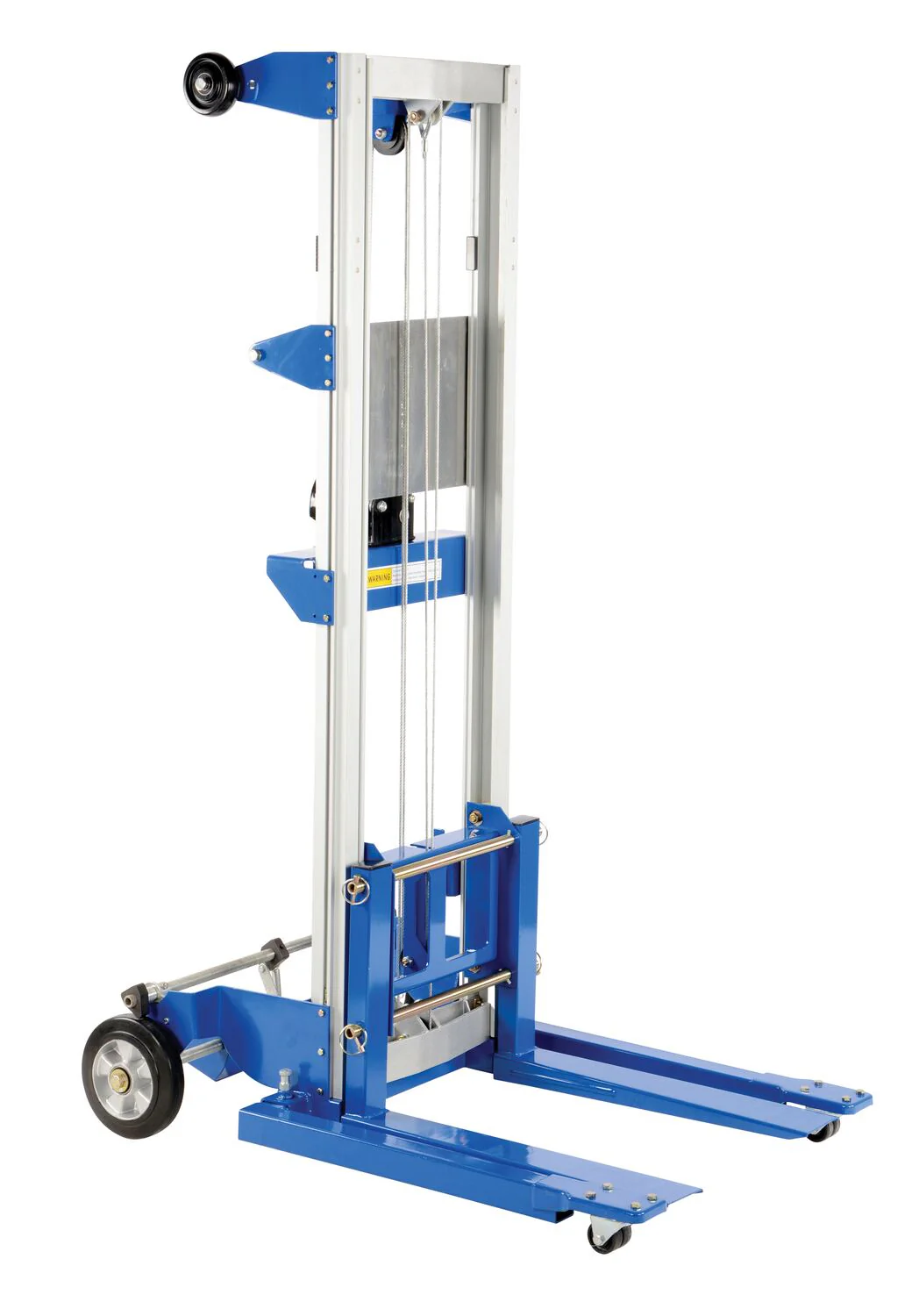

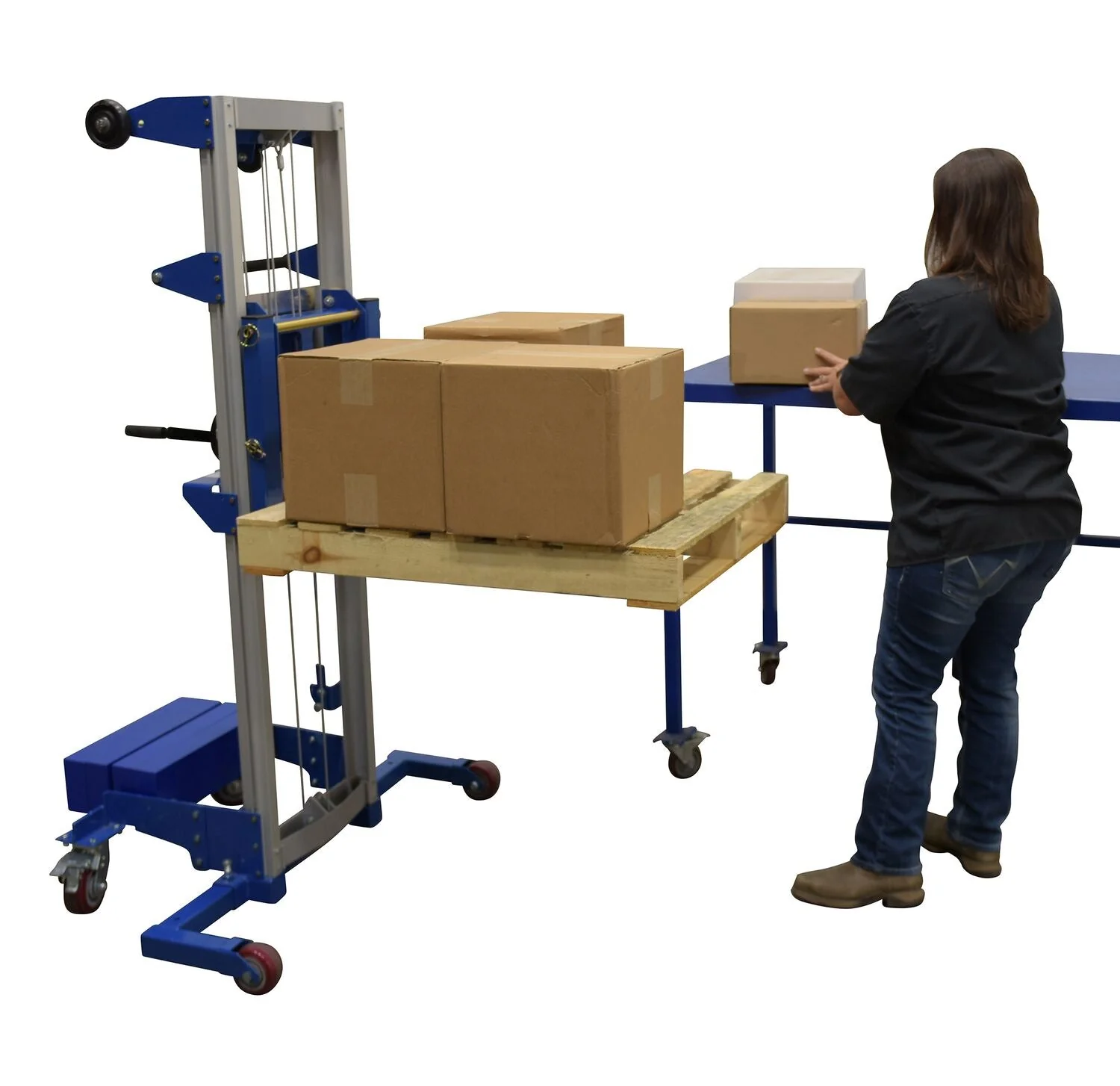

The Vestil Lightweight Winch Stacker Truck is designed to make lifting heavy items easier and safer. It features a winch that provides controlled lifting and lowering, thanks to an integrated brake system, a lightweight frame for maneuverability, and a 500-lb. maximum capacity (depending on the model). This stacker truck is suitable for a variety of lifting and transporting applications for palletized items.
| Hand Winch Lift Trucks | ||||||
| Model | Image | Capacity (lbs) | Lowered Height | Raised Height Forks Down/Up | Overall Size (WxLxH) |
Wt. (lbs) |
| Standard DesignĀ (Fixed Straddle Width: 12-3/4" (I.D.) and 21" (O.D.)) | ||||||
| A-LIFT-R |  |
500 | 3-1/2"/23-1/2" | 47"/67" | 24"x35"x 68-3/4" | 191 |
| A-LIFT-R-HP |  |
400 | 3-1/2"/23-1/2" | 97"/117" | 25"x35"x 67-5/16" | 203 |
|
Straddle DesignĀ (Adjustable Straddle Width: 21-3/4" to 36-1/4" (I.D.) and 29"to43-7/8" (O.D.)) |
||||||
| A-LIFT-S |  |
500 | 1-1/4"/21-1/4" | 47-1/4"/68-7/8" | 43-7/8"x 42-1/2"x 67-5/16" | 200 |
| A-LIFT-S-HP |  |
400 | 1-1/4"/21-1/4" | 98-7/16"/120" | 43-7/8"x42-1/2"x67-5/16" | 219 |
| A-LIFT-S-EHP |  |
350 | 1-1/4"/21-1/4" | 122"/143-11/16" | 43-7/8"x42-1/2"x79-1/8" | 226 |
|

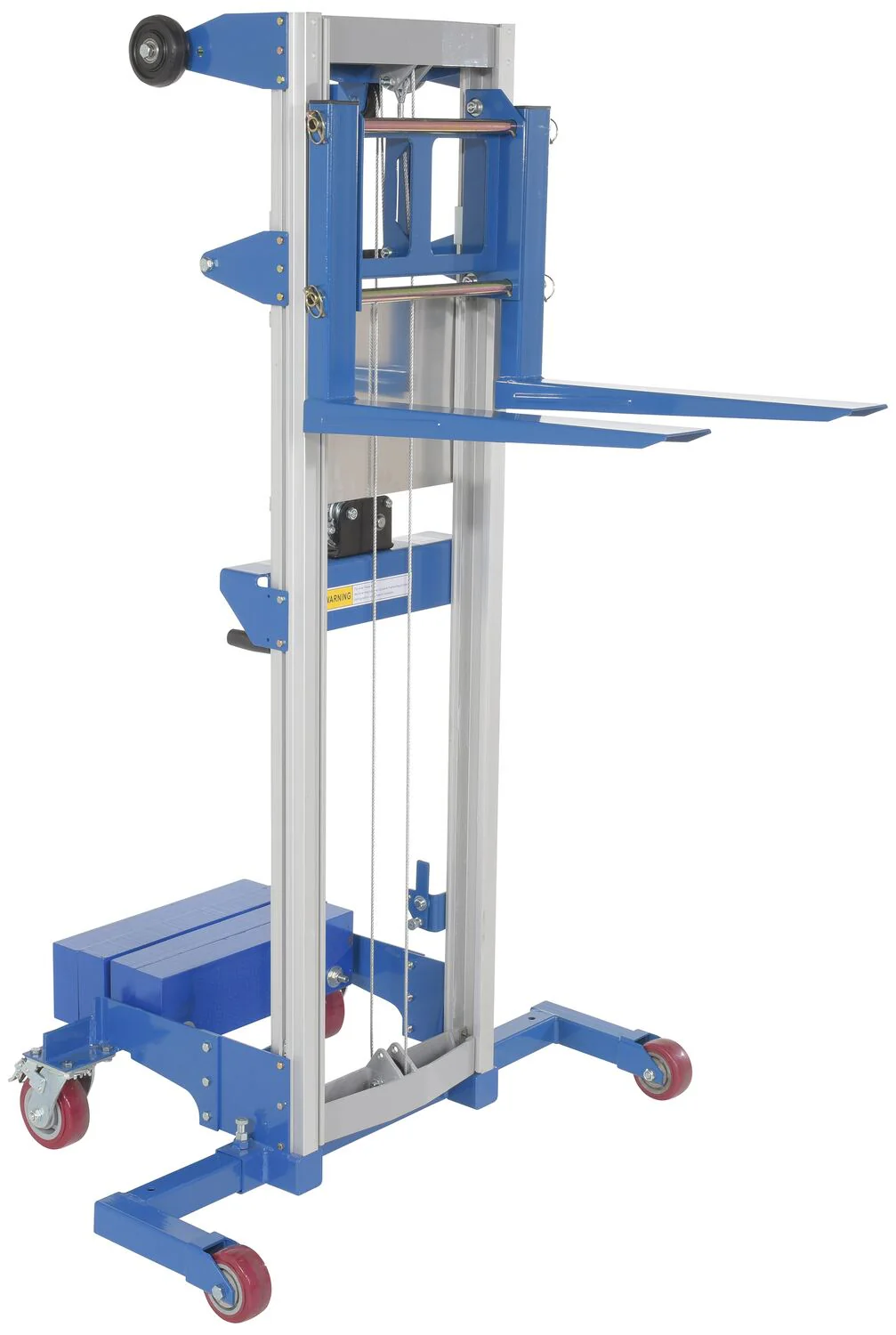

Counter-Balance DesignĀ (Adjustable Straddle Width:21-1/2"to 36-1/2 (I.D.) and 28-1/4 to 43-1/4 (O.D.)) |
||||||
| A-LIFT-CB |  |
500 | 2"/21-1/4" | 47-1/4"/68-7/8" | 43-1/4"x 45-7/8"x 67-5/16" | 437 |
| A-LIFT-CB-HP |  |
400 | 2"/21-1/4" | 98-7/16"/ 120" | 43-1/4"x 45-7/8"x 67-5/16" | 445 |
| A-LIFT-CB-EHP |  |
350 | 2"/21-1/4" | 122"/143-11/16" | 43-1/4"x 46"x 79-1/8" | 454 |
Original: $1,121.11
-65%$1,121.11
$392.39Product Information
