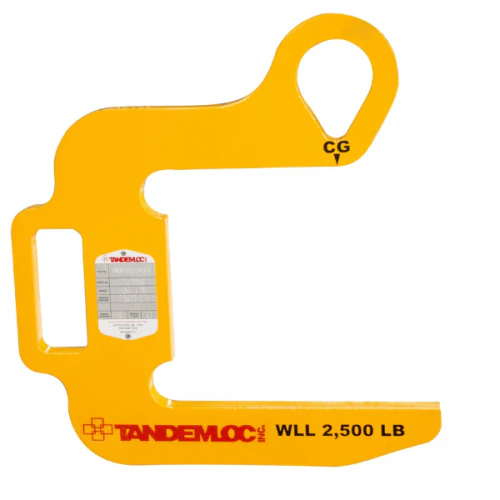

Tandemloc Coil Lifters

If you’re looking for a coil hook that is built to current ASME regulations, look no further than this range from Tandemloc – you’d be amazed at how many lifters on the market these days are designed to outdated standards, and we don’t want you safety put at any risk.



Designed for moving and positioning of heavy coils with an overhead lifting device, this range of coil hooks feature a narrow, space-saving design, lead-in taper for easy insertion of coils, and large super-duty guide handles that will last a lifetime of rugged service – quality and reliability guaranteed.



With capacities from 0.5 to 5 tonne available, these coil hooks do not require any maintenance, will hang level when loaded, feature edge protecting chamfers on the lift arm, and are all proof tested to 125% of the WLL with certification provided.

• 0.5te to 5te capacities
• Space-saving design
• Easy insertion with lead-in taper
• Super-duty handles for easy positioning
• No maintenance required
• Level hanging when loaded
• Low weight, high capability
• Proof tested to 125%
• ASME B30.20 compliant



SEE IMAGES FOR DRAWING

Model	WLL	Max Radial Dimension	Max Width	Min Eye Diameter	A	B	C	D	L	Throat	HR	Weight (lbs.)
AN30A01-08A-PA Coil Lifter	1,000 LBS	14.25 inches	8 inches	2.5 inches	13/16 inches	2 inches	3.25 inches	2.25 inches	8 inches	14.5 inches	18.75 inches	15
AN30A01-12A-PA Coil Lifter	1,000 LBS	14.25 inches	12 inches	2.5 inches	13/16 inches	2 inches	3.25 inches	2.25 inches	12 inches	14.5 inches	18.75 inches	17
AN30A02-08A-PA Coil Lifter	2,000 LBS	17.25 inches	8 inches	2.5 inches	13/16 inches	2 inches	3.25 inches	2.25 inches	8 inches	17.5 inches	21.75 inches	16
AN30A02-16A-PA Coil Lifter	2,000 LBS	17.25 inches	16 inches	2.75 inches	13/16 inches	2 inches	2.5 inches	2.5 inches	16 inches	17.5 inches	21.75 inches	23
AN30A04-08A-PA Coil Lifter	4,000 LBS	19.25 inches	8 inches	2.5 inches	1 inch	2.5 inches	4 inches	2.25 inches	8 inches	19.5 inches	24.625 inches	28
AN30A04-16A-PA Coil Lifter	4,000 LBS	19.25 inches	16 inches	3.25 inches	1 inch	2.5 inches	4 inches	3 inches	16 inches	19.5 inches	25.375 inches	54
AN30A07-12A-PA Coil Lifter	7,000 LBS	21.25 inches	12 inches	3.25 inches	1 inch	2.5 inches	4 inches	3 inches	12 inches	21.5 inches	27.375 inches	54
AN30A07-16A-PA Coil Lifter	7,000 LBS	21.25 inches	16 inches	3.25 inches	1 inch	2.5 inches	4 inches	3 inches	16 inches	21.5 inches	27.375 inches	59
AN30A07-20A-PA Coil Lifter	7,000 LBS	21.25 inches	20 inches	3.75 inches	1 inch	2.5 inches	4 inches	3.5 inches	20 inches	21.5 inches	27.875 inches	73
AN30A10-16A-PA Coil Lifter	10,000 LBS	25.25 inches	16 inches	3.75 inches	1.5 inches	4 inches	5.75 inches	3.5 inches	16 inches	25.5 inches	32.875 inches	95
AN30A10-20A-PA Coil Lifter	10,000 LBS	25.25 inches	20 inches	4 inches	1.5 inches	4 inches	5.75 inches	4 inches	25.5 inches	25.5 inches	32.875 inches	114
