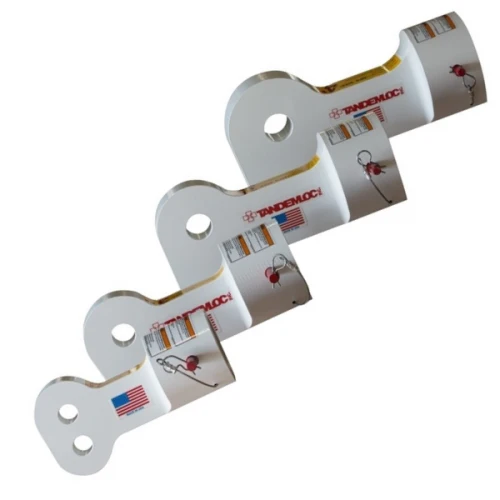

Tandemloc Aluminum Spreader Beam End Caps [COPY FOR VARIANTS]

Looking to build your own unique lightweight spreader beams with high lifting capacities? Tandemloc has just the solution – the AQ31 Series Aluminum Spreader Beam End Caps!



Extending on the popular and highly successful concept of the Tandemloc AC25C Steel End Caps that allow customers to assemble ASME B30,20 compliant spreader beams, the AQ31 series offers the same capabilities as its predecessors, but with a lighter WLL range and substantially lighter profile, while retaining the strength and durability often needed in harsh industrial environments.



The sturdy aluminum design providers end-users with high working load limits up to 62,000lbs, while the lifter weight ratio means that you can now hand-create a spreader beam without the assistance of a crane. The Lighter lifter weight also means that single operator transportation is possible, so you can reduce costs by eliminating needless air freight or shipping.



Manufactured from 6062-T6 aluminum, they offer high strength and durability in naturally corrosive marine environments, and are individually proof tested to 125% of WLL.



CAUTION: Never use a sling angle of less than specified. Never exceed the WLL for the pipe. These could lead to serious injury, death and property damage.

• Capacities up to 62,000lbs
• ASME B30.30 compliant
• Proof tested to 125% of WLL
• Material: ASTM 6061-T6 Aluminum
• Sandblast, primed and white painted finish

Minimum Capacity per pair of End Caps: 12,000 lbs.

Maximum Capacity per pair of End Caps: 62,000 lbs (Sling angle at 60◦); 36,000 lbs. Sling angle at 45◦)

Spreader Pipe: 6061-T6 Aluminum NPS Schedule 80 pipe in 2.5”, 3”, 3.5” and 4”. Max Length 20’

NOTE: PRICING IS PER END CAP, YOU MUST PURCHASE TWO (2ea) END CAPS PER BEAM.
