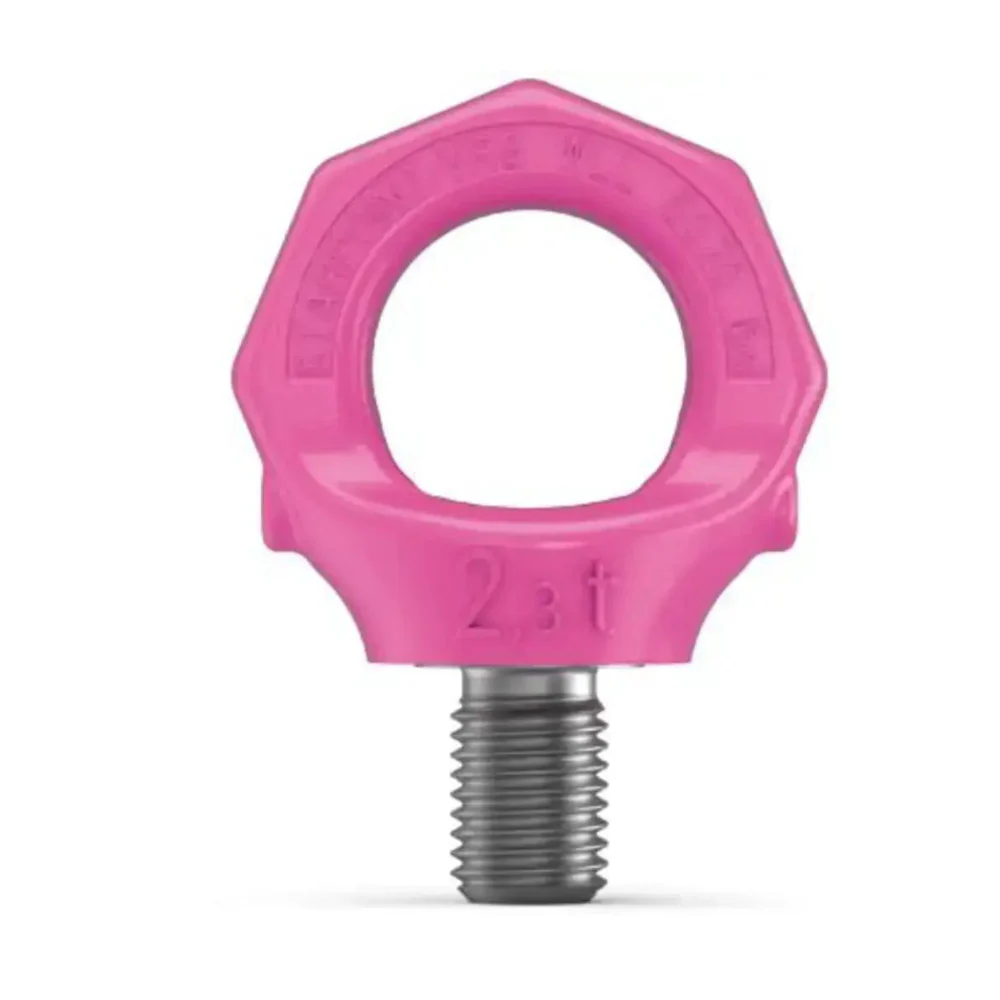

RUD VRS Starpoint, UNC/UN Thread
RUD's VRS Starpoint, UNC Thread, boltable lifting point comes in a comprehensive range of thread sizes and working load limits - from 0.1t - 9t.
Featuring a non-detachable ICE-Bolt to reduce the risk of using unsuitable standard bolts, each unit has clear marking of minimum WLL for all loading directions, as well as markings of thread size and batch numbers on the bolt head.
Components have been tested to the criterias of BG/DGUV "GS-HM 36".
Quick and easy installation via just one bolt connection.
|

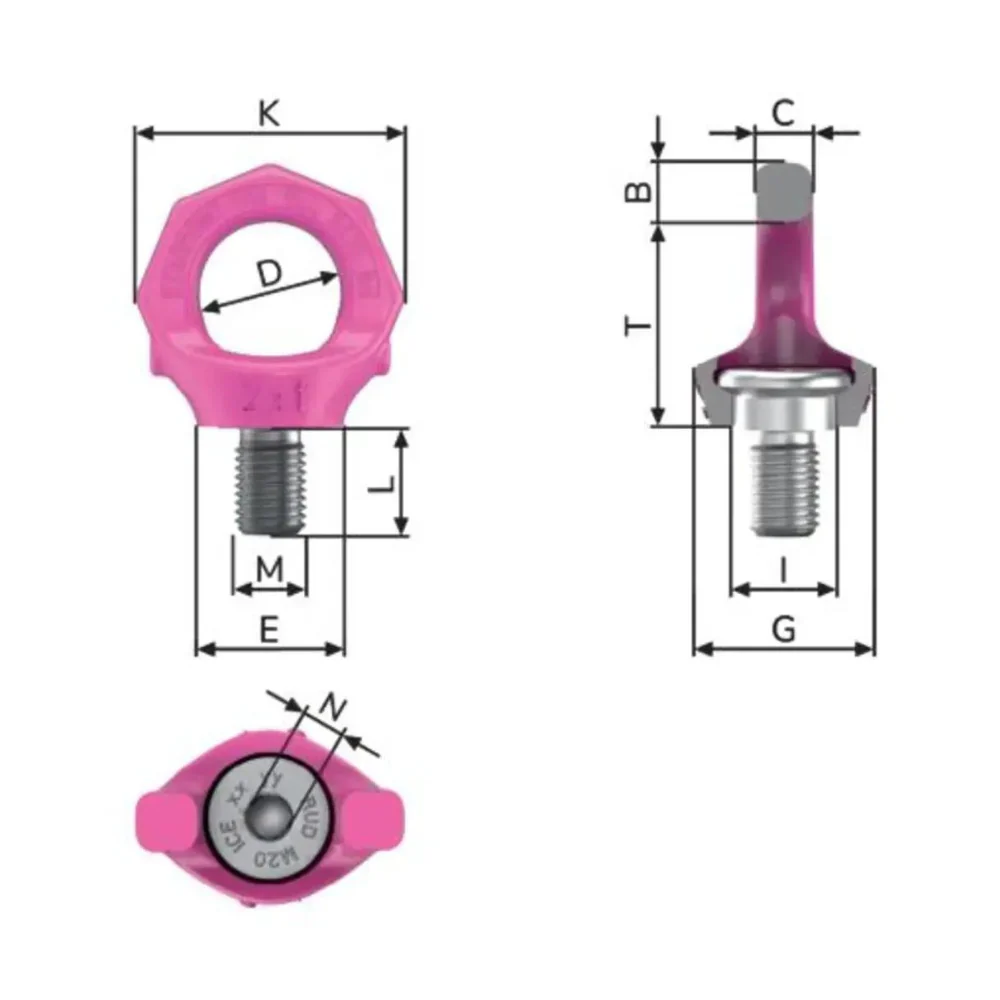

SKU |
WLL (lbs) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
I (mm) |
K (mm) |
L (mm) |
M |
N (in.) |
T (mm) |
|
7999105 |
220 |
9 |
7 |
20 |
23 |
28 |
13 |
37 |
9 |
1/4"-20UNC |
0.25 |
28 |
|
7103959 |
880 |
11 |
9 |
25 |
25 |
30 |
16.3 |
47 |
15 |
3/8"-16UNC |
0.25 |
35 |
|
7103960 |
1650 |
13 |
10 |
30 |
30 |
34 |
19.8 |
56 |
18 |
1/2"-13UNC |
0.3125 |
42 |
|
7103965 |
9920 |
26 |
24 |
60 |
66 |
75 |
44 |
114 |
45 |
1 1/4"-7UNC |
0.625 |
87 |
|
7991917 |
15430 |
32 |
29 |
73 |
76 |
98 |
53 |
135 |
65 |
1 1/2"-8UN |
0.875 |
104 |
|
7103966 |
15430 |
32 |
29 |
73 |
76 |
98 |
53 |
135 |
65 |
1 1/2"-6UNC |
0.875 |
104 |
|
7103967 |
19840 |
36 |
34 |
85 |
86 |
109 |
62 |
157 |
43 |
1 3/4"-5UNC |
1 |
122 |
