RUD VRBS-FIX Load Ring for Welding Circumferential Seams
RUD's VRBS-FIX Load Ring for welding circumferential weld seams is the perfect shared-forced welding solution, with non complex leveling of components to each other.
Available in working load limits from 6.7t right up to 50t, split force is introduced thanks to the multiple fixing points, while the innovative circular fillet weld arrangement eliminates the risk of contact/crevice corrosion.
The suspension ring can be pivoted through 180°, with working load limit possible up to 90° in load ring plane.
Featuring forged marking for easy determination of load angle, as well as signature wear marking for easy identification of general wear and tear.
|

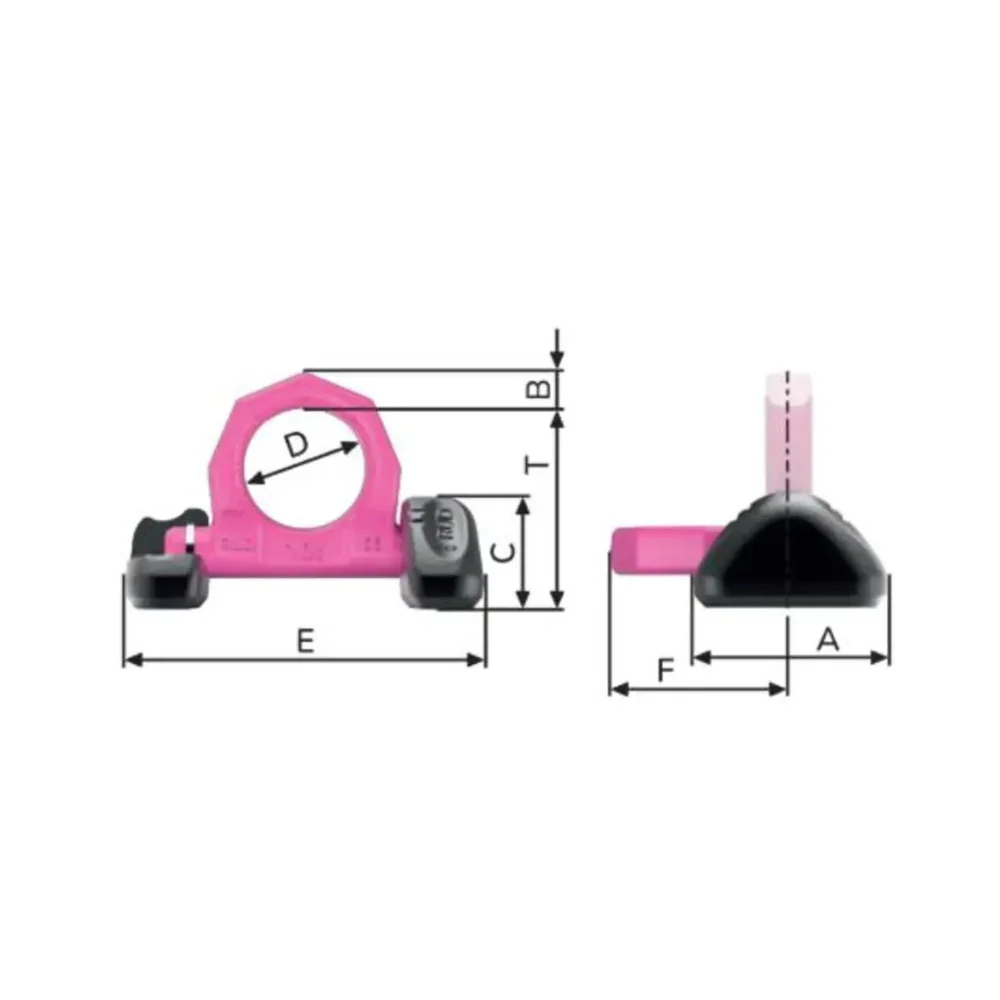

SKU |
WLL (t) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
T (mm) |
|
7999020 |
6.7 |
88 |
20 |
50 |
60 |
167 |
91 |
97 |
|
7999021 |
10 |
100 |
22 |
60 |
65 |
191 |
100 |
108 |
|
7999301 |
16 |
130 |
30 |
72 |
90 |
267 |
134 |
140 |
|
7999302 |
31.5 |
160 |
42 |
99 |
130 |
366 |
195 |
202 |
|
7906272 |
50 |
246 |
70 |
148 |
230 |
596 |
335 |
330 |
