OZ Lifting Davit Crane Wheel Bases

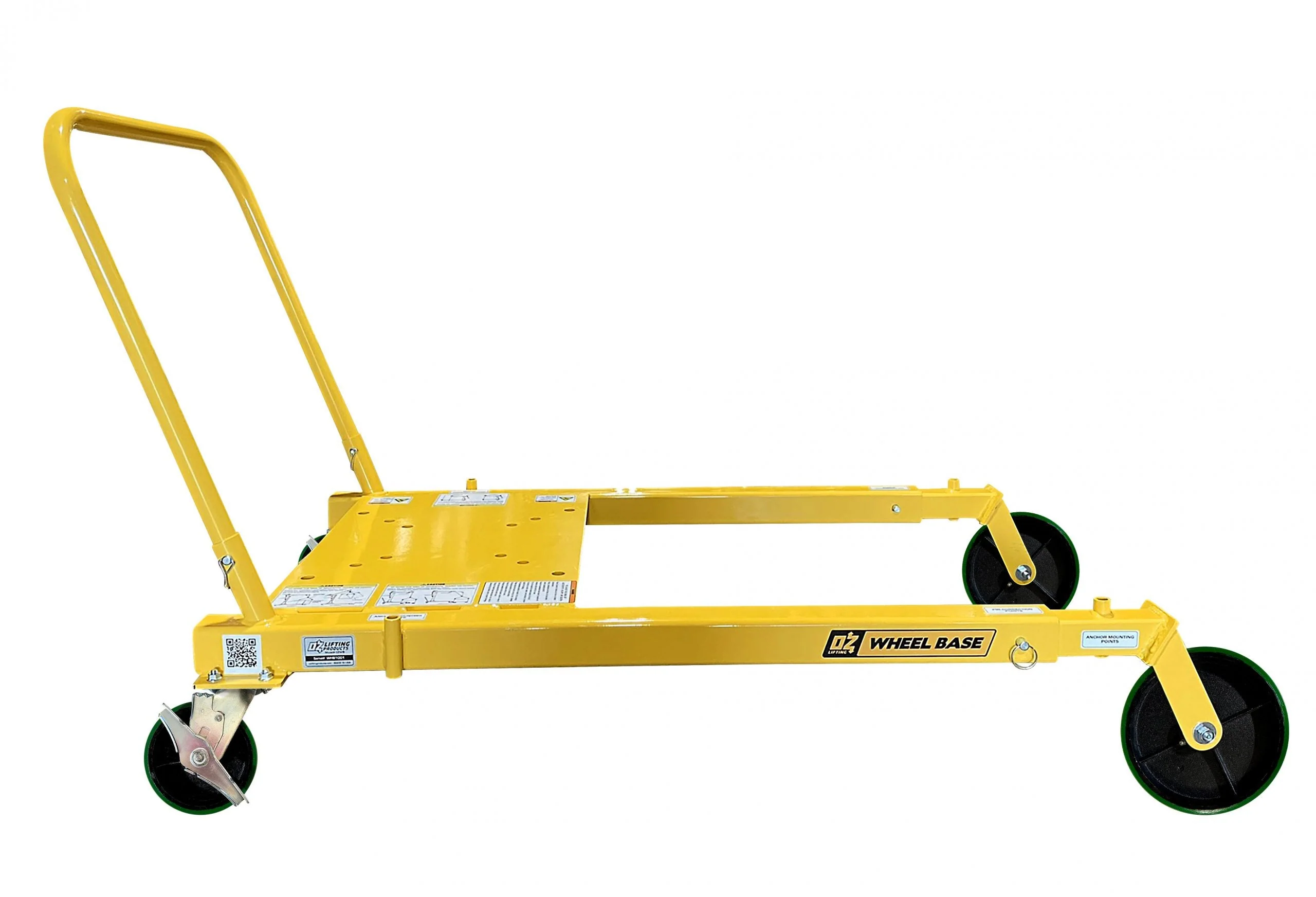

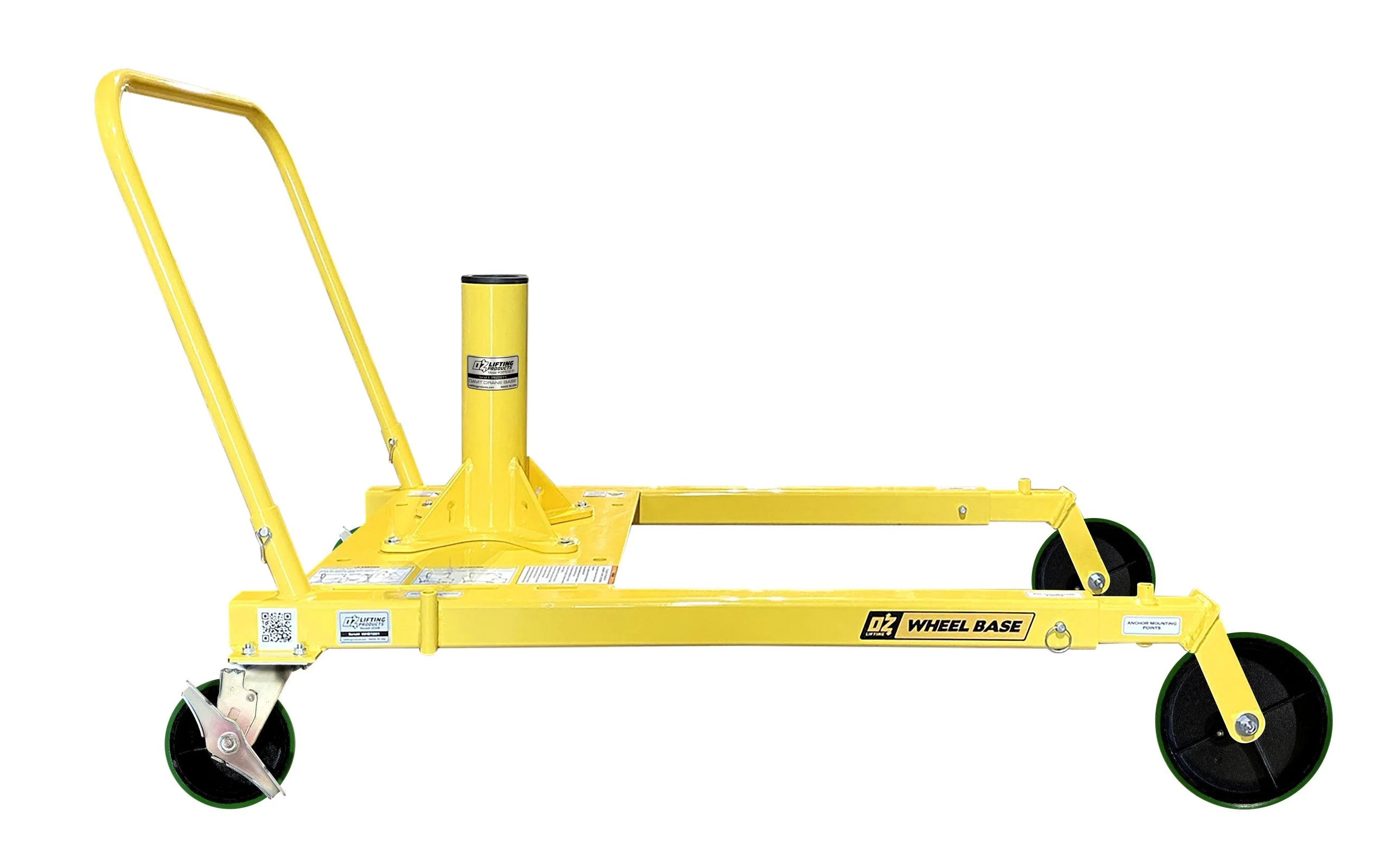

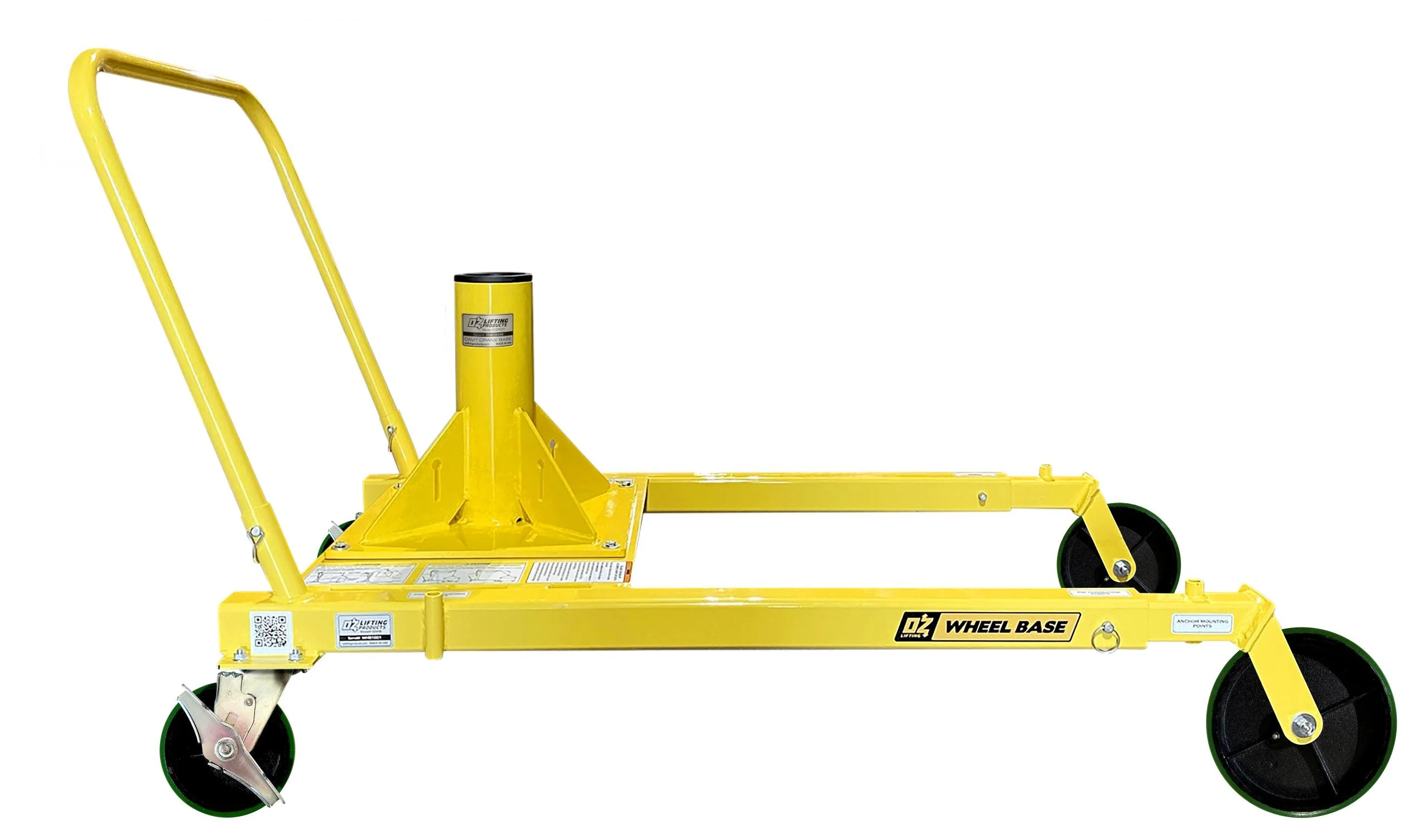

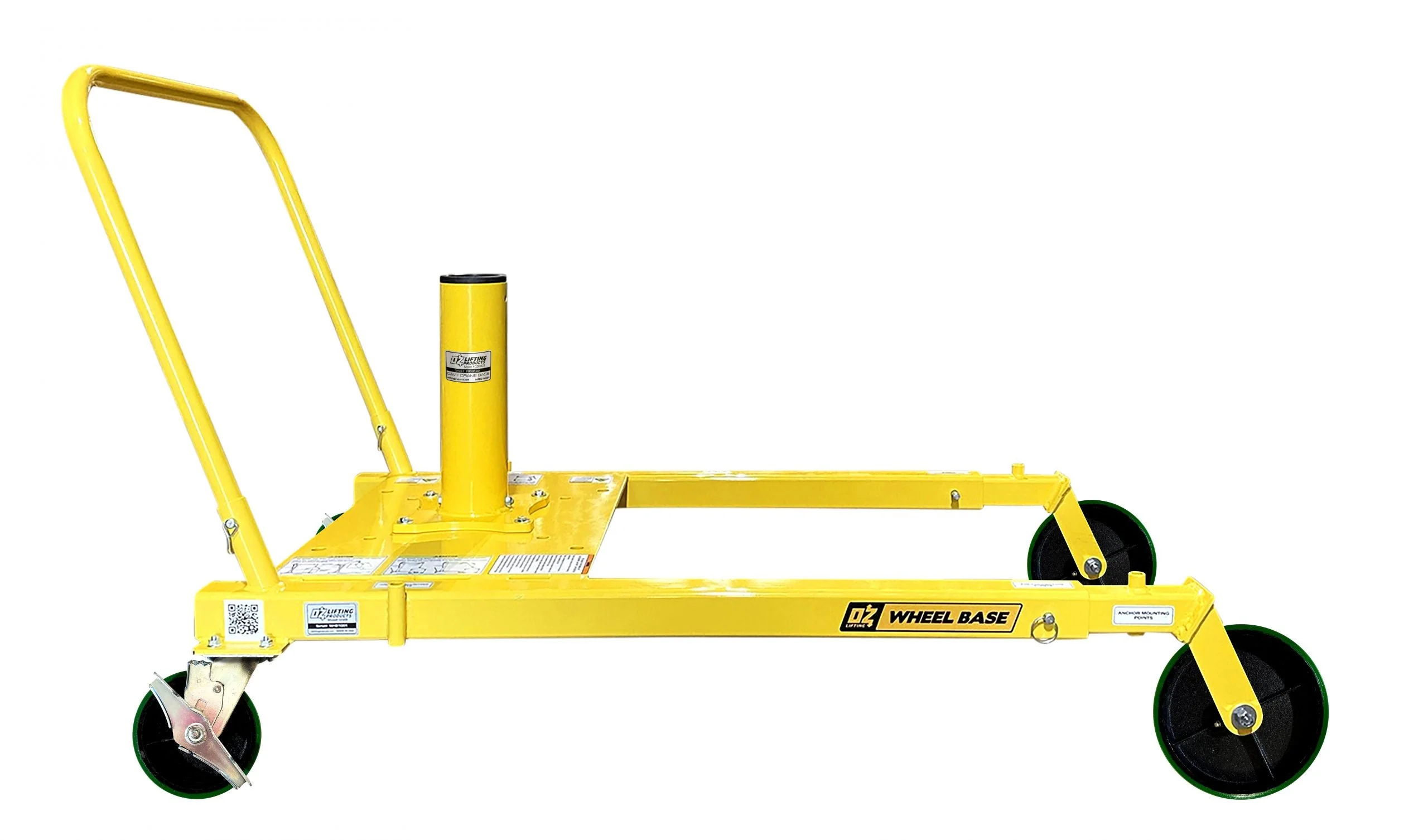

Looking for an effortless way to manoeuvre your davit crane from location A to location B Well, OZ Lifting have the perfect solution with their industrial strength wheel bases - Manufactured right here in the USA and designed to work in conjunction with all OZ davit cranes up to 1,200lbs capacity.

Boasting a high-endurance steel construction with a powder-coated finish, these wheel base units feature durable polyurethane-tread wheels - suitable for both indoor and outdoor use - with rear wheel swivel castors that ensure smooth mobility and manoeuvring in a wide variety of workspaces.

Furthermore, the rear castors feature a lock brake for enhanced safety and stability at al times, while the patent pending floor-anchoring system means that the davit (sold separately) can rotate a full 360-degrees even while under load.

Additionally, these wheel bases are fully adjustable from 56.57" to 77.57" in length.

Please check Specifications for model compatibility, then select your required option from the dropdown menu.



WHAT'S INCLUDED?

• Wheel Base
• Floor-Anchoring Mounting Bolt Kit
• Davit Crane Locking Collar (Not on OZWB model)
• Toolbox Storage Tube



IMPORTANT: Please note that the pedestal base IS NOT included with the wheel base units and must be ordered separately. Please see related products

Product Code	Compatibility
OZWB	OZ Davit Cranes Up To 1200lbs	Does Not Include Pedestal Base & Locking Collar
OZWB1	OZ1200DAV	Includes Pedestal Base & Locking Collar
OZWB1-TP	OZTP1200DAV, OZA1000DAV, OZXR1000DAV	Includes Pedestal Base & Locking Collar
OZWB2	OZ1000DAV, OZCF1200DAV	Includes Pedestal Base & Locking Collar
OZWB2-TP	OZTP500DAV	Includes Pedestal Base & Locking Collar
OZWB3	OZ500DAV, OZA500DAV, OZXR500DAV	Includes Pedestal Base & Locking Collar



DIMENSIONS

Length	Width	Height	Weight
Adjustable from 56.57" to 77.57"	32.44"	36.87"	140lbs (without pedestal base - total weight depends on davit crane being used
