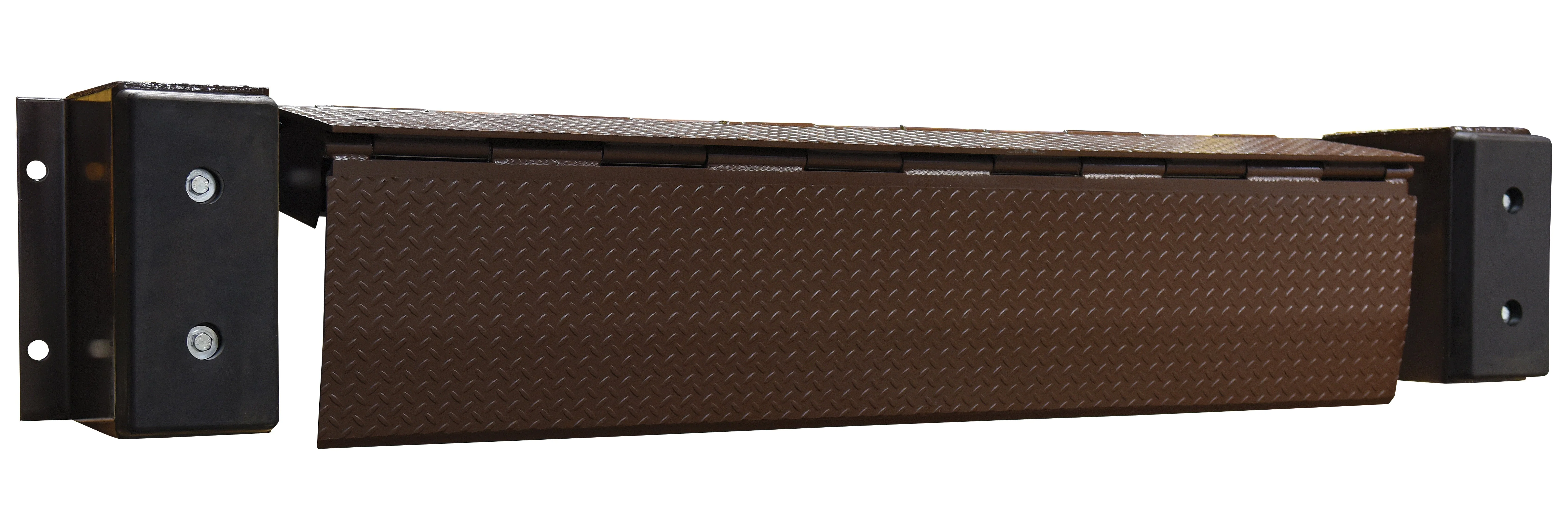

The Edge-O-Dock leveler from Vestil permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers.

Concrete recess is not required.

The leveler comes complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping is twenty-nine (29) inches (29-13/16" with 30,000 lb. capacity) with a (36-5/8") long ramping length available for smaller grade. A steel dock edge, approach ramp, or approach plate is necessary on the dock face, and a continuous weld (completely across the top, and down both sides of the mounting plate) is required for proper installation. Additionally, the mounting plate must be bolted to the dock face, via the anchor holes provided on the mounting plate.

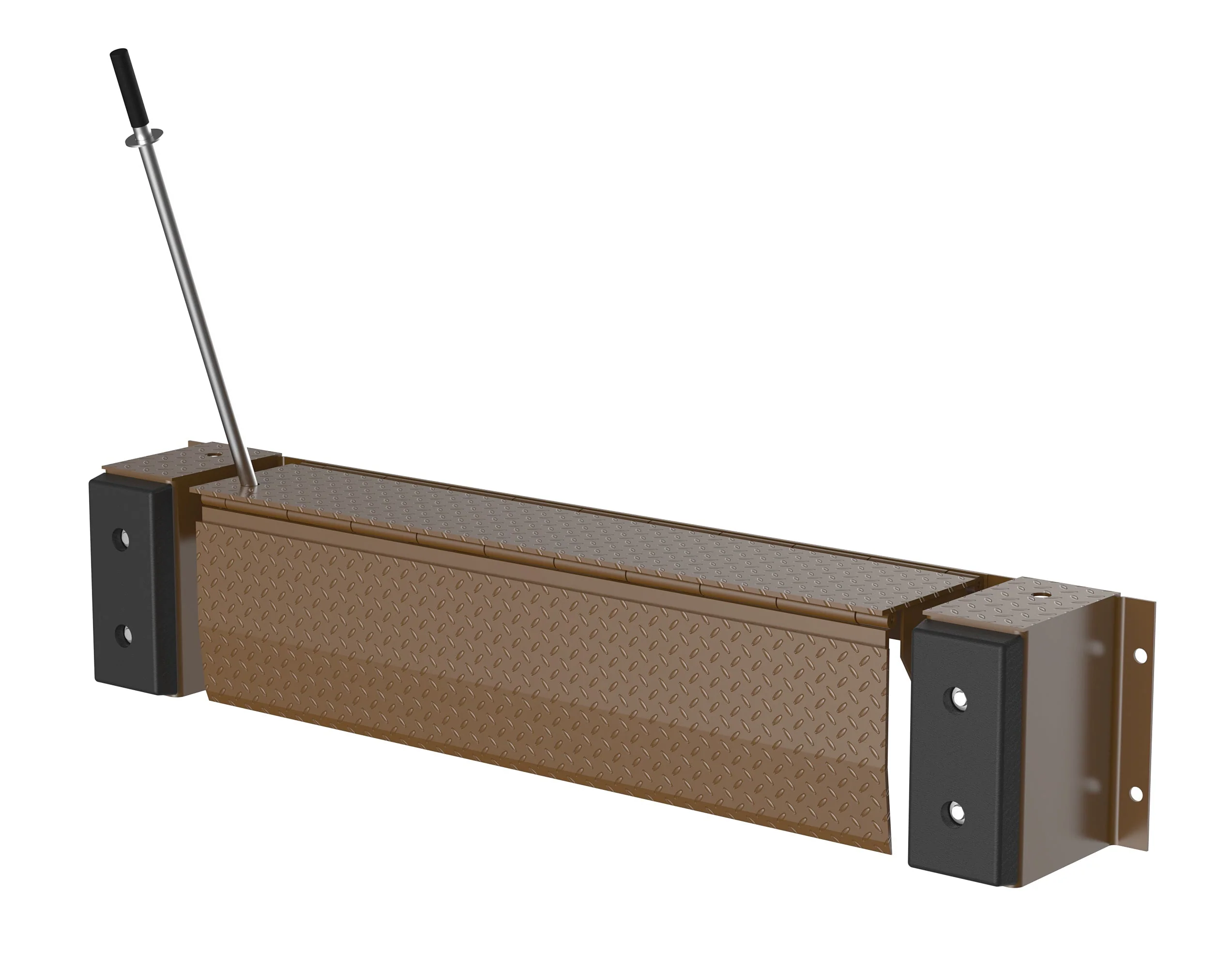

The Mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically. The Manual Hydraulic Hand Pump system is used to lift the leveler and extend the lip. The operator actuates the lowering valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil. Truck must pull out for leveler to return to stored position.

The Electric Hydraulic Edge-O-Dock is the easiest to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend. 115V, 1-phase power standard. Unit comes complete with motor, pump, control box, cylinder, lines, and oil. Truck must pull out for leveler to return to stored position.

Mechanical Edge-O-Docks
Model	Type	**Usable Width	Capacity (lbs)	Wt. (lbs)
FM-0648	Mechanical	48" Width	6,000	348
FM-2066	Mechanical	66" Width	20,000	514
FM-2072	Mechanical	72" Width	20,000	523
FM-2078	Mechanical	78" Width	20,000	560
FM-2566	Mechanical	66" Width	25,000	556
FM-2572	Mechanical	72" Width	25,000	585
FM-3066	Mechanical	66" Width	30,000	663
FM-3072	Mechanical	72" Width	30,000	709
PP-1572-36*	Hand Pump	72" Width	15,000	743
PP-2066	Hand Pump	66" Width	20,000	542
PP-2072	Hand Pump	72" Width	20,000	566
PP-2078	Hand Pump	78" Width	20,000	578
PP-2566	Hand Pump	66" Width	25,000	600
PP-2572	Hand Pump	72" Width	25,000	615
PP-2572-36*	Hand Pump	72" Width	25,000	780
PP-3066	Hand Pump	66" Width	30,000	998
PP-3072	Hand Pump	72" Width	30,000	725
PE-1572-36*	Electric	72" Width	15,000	743
PE-2066	Electric	66" Width	20,000	542
PE-2072	Electric	72" Width	20,000	566
PE-2078	Electric	78" Width	20,000	578
PE-2566	Electric	66" Width	25,000	600
PE-2572	Electric	72" Width	25,000	615
PE-2572-36*	Electric	72" Width	25,000	826
PE-3066	Electric	66" Width	30,000	745
PE-3072	Electric	72" Width	30,000	782
*36 Denotes ramp length of 36-5/8" smaller grade
** Overall width is usable width plues 27"

Dock Levelers

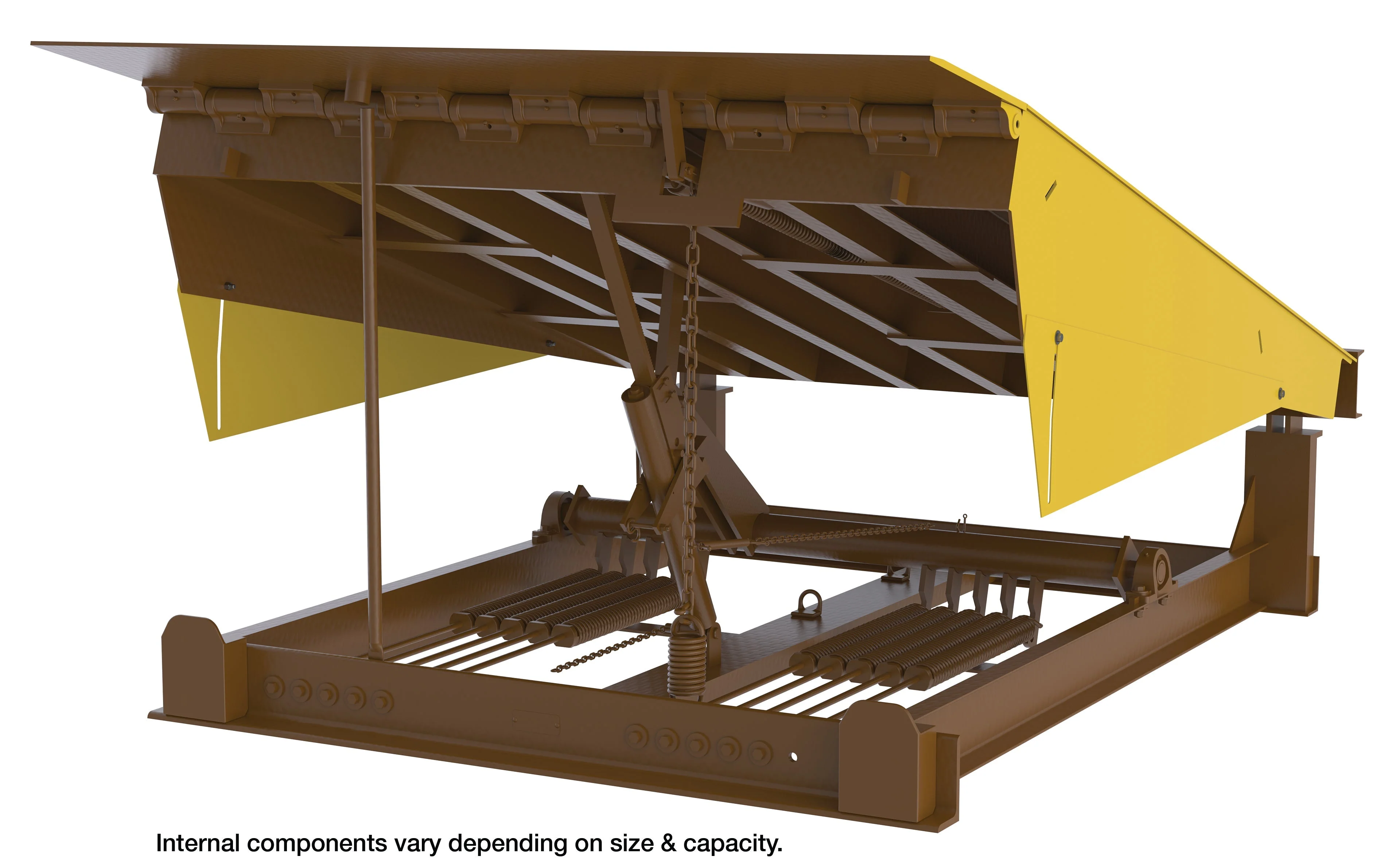

Vestil Mechanical Dock Levelers

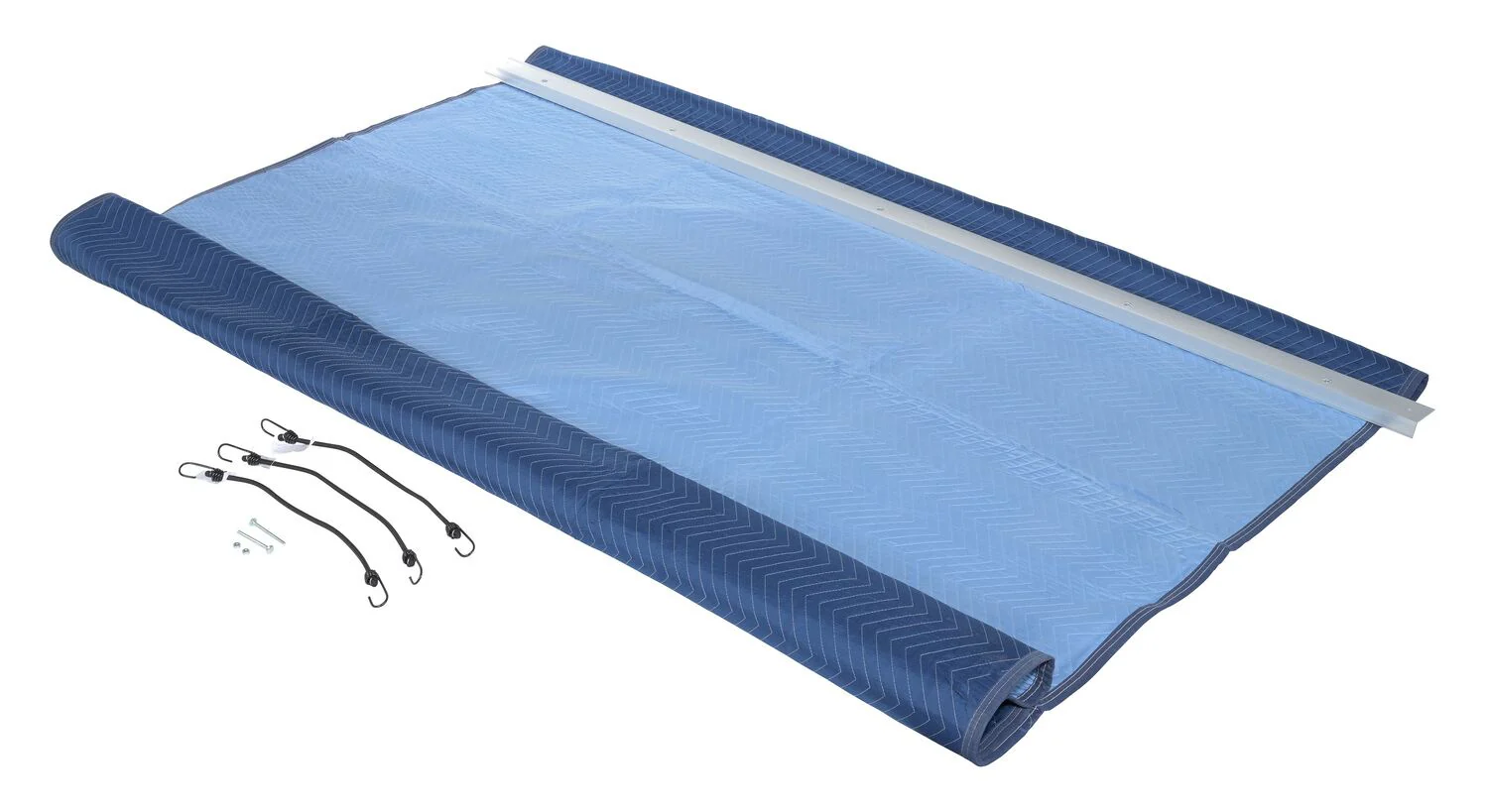

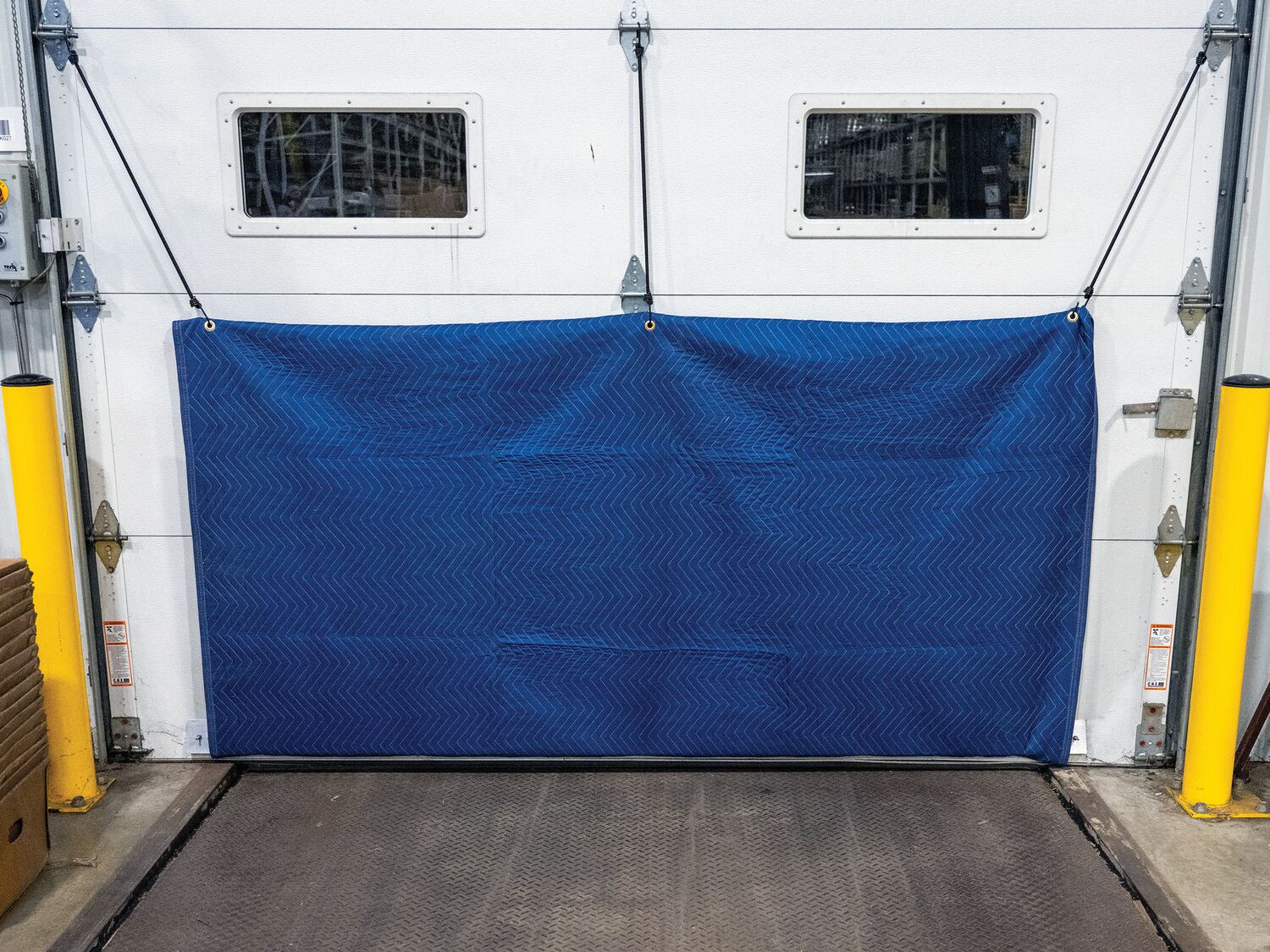

Vestil Dock Leveler Insulation Blanket

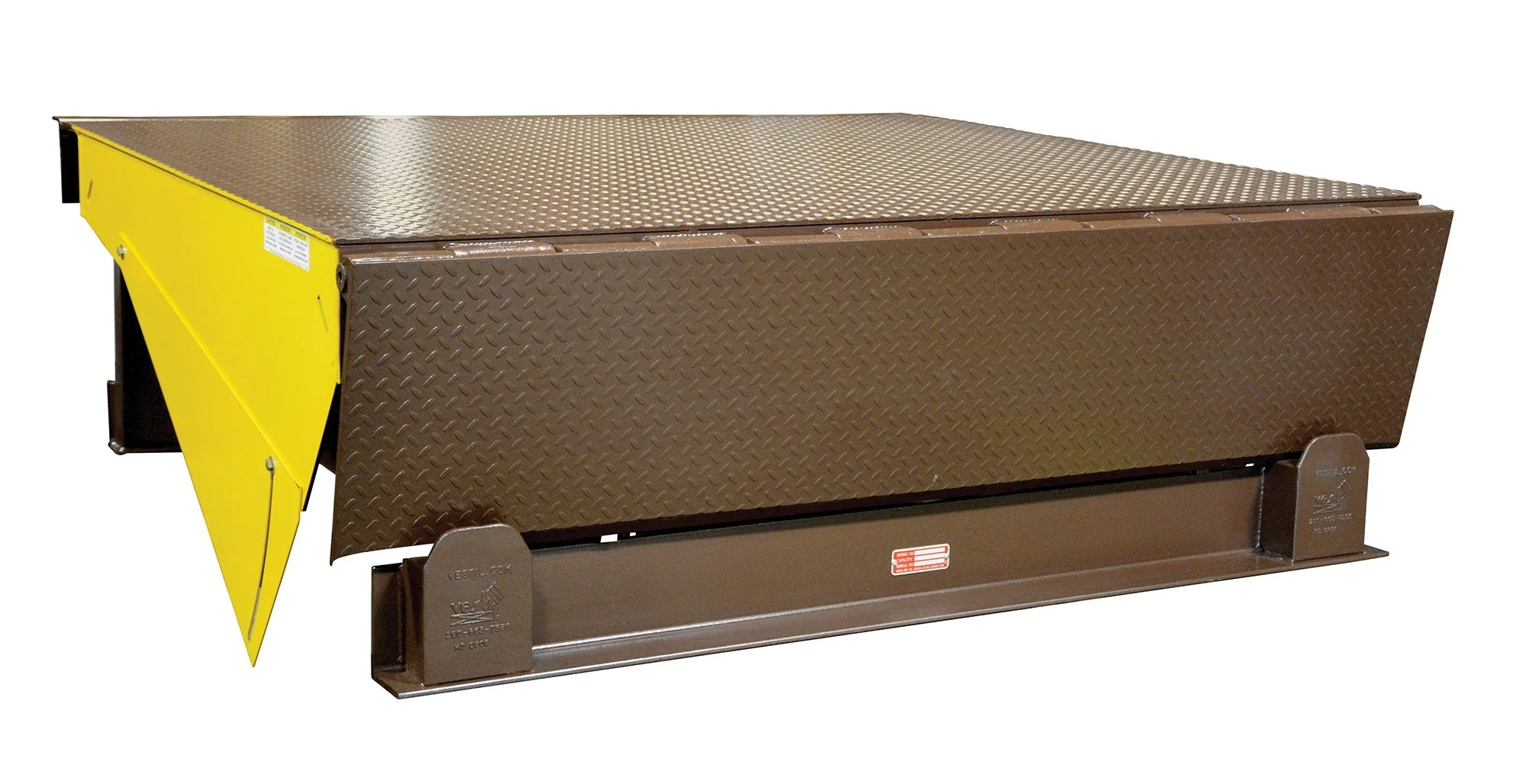

Vestil Electric Hydraulic Dock Levelers
