Heavy-Duty Cantilever Racks are completely adjustable for application specific design flexibility. Long, unwelded stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load. Arms are adjustable up and down the length of the upright. Pre-drilled holes on the uprights are spaced every 3-1/2" for bolt-on arm placement (hardware included). All arms feature lips to prevent product from falling off. Standard arms have a 3-1/8" lip. Heavy-duty and extra heavy-duty have a 3-1/4" lip. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application. *Capacity listed is per upright.

Single-Sided Cantilever Uprights (Heavy-Duty)
Model	Height	Base	Arms to Use	Capacity (lbs)	Wt. (lbs)
HU-C-8-18	96"	28-1/4"	18"	24,700	265
HU-C-8-24	96"	36-1/2"	24"	21,500	275
HU-C-8-36	96"	48-1/2"	30"/36"	18,300/16,000	292
HU-C-8-48	96"	60-1/2"	42"/48"	14,200/12,800	310
HU-C-10-18	120"	28-1/4"	18"	24,700	313
HU-C-10-24	120"	36-1/2"	24"	21,500	323
HU-C-10-36	120"	48-1/2"	30"/36"	18,300/16,000	340
HU-C-10-48	120"	60-1/2"	42"/48"	14,200/12,800	357
HU-C-12-18	144"	28-1/4"	18"	24,400	351
HU-C-12-24	144"	36-1/2"	24"	20,900	362
HU-C-12-36	144"	48-1/2"	30"/36"	17,800/15,600	378
HU-C-12-48	144"	60-1/2"	42"/48"	13,900/12,500	396
HU-C-14-18	168"	28-1/4"	18"	23,400	390
HU-C-14-24	168"	36-1/2"	24"	20,200	401
HU-C-14-36	168"	48-1/2"	30"/36"	17,600/15,400	417
HU-C-14-48	168"	60-1/2"	42"/48"	13,700/12,400	435
Double-Sided Cantilever Uprights
Model	Height	Base	Arms to Use	Capacity (lbs)	Wt. (lbs)
HDU-C-8-18	96"	46"	18"	49,400	288
HDU-C-8-24	96"	58"	24"	43,000	307
HDU-C-8-36	96"	82"	30"/36"	36,600 /32,000	342
HDU-C-8-48	96"	106"	42"/48"	28,400/25,600	378
HDU-C-10-18	120"	46"	18"	49,200	336
HDU-C-10-24	120"	58"	24"	42,600	355
HDU-C-10-36	120"	82"	30"/36"	36,400/31,600	391
HDU-C-10-48	120"	106"	42"/48"	28,200/25,200	427
HDU-C-12-18	144"	46"	18"	48,800	374
HDU-C-12-24	144"	58"	24"	41,800	393
HDU-C-12-36	144"	82"	30"/36"	35,600/31,200	429
HDU-C-12-48	144"	106"	42"/48"	27,800/25,000	465
HDU-C-14-18	168"	46"	18"	46,800	413
HDU-C-14-24	168"	58"	24"	40,400	432
HDU-C-14-36	168"	82"	30"/36"	35,200/30,800	467
HDU-C-14-48	168"	106"	42"/48"	27,400/24,800	507
Straight Arms
Model	Arm Length			Uniform Capacity Per Arm (lbs)	Wt. (lbs)
HSA-C-18	18"			2,500	16
HSA-C-24	24"			2,000	21
HSA-C-30	30"			1,500	22
HSA-C-36	36"			1,200	26
HSA-C-42	42"			1,100	29
HSA-C-48	48"			1,000	32
Inclined Arms
Model	Arm Length			Uniform Capacity Per Arm (lbs)	Wt. (lbs)
HIA-C-18	18"			2,500	16
HIA-C-24	24"			2,000	21
HIA-C-30	30"			1,500	22
HIA-C-36	36"			1,200	26
HIA-C-42	42"			1,100	29
HIA-C-48	48"			1,000	32
Heavy-Duty & Extra Heavy-Duty Arms
Model	Arm Length			Uniform Capacity Per Arm (lbs)	Wt. (lbs)
HDSA-C-36	36"			2,175	26
XHDSA-C-36	36"			3,400	30
HDSA-C-42	42"			1,865	29
XHDSA-C-42	42"			2,900	33
HDSA-C-48	48"			1,630	31
HDSA-C-48M	48"			2,000	33
XHDSA-C-48	48"			2,500	36
Brace Sets (includes 2)
Model	Upright Height		Length		Wt. (lbs)
HB-C-8-3	96"-120"		35-1/2"		28
HB-C-8-4	96"-120"		47-1/2"		31
HB-C-8-5	96"-120"		59-1/2"		38
HB-C-8-6	96"-120"		71-1/2"		43
HB-C-8-7	96"-120"		83-1/2"		98
HB-C-8-8	96"-120"		95-1/2"		107
Brace Sets: Includes Four (4) diagonal and Three (3) Cross
Model	Upright Height		Length		Wt. (lbs)
HB-C-14-3	144"- 168"		35-1/2"		44
HB-C-14-4	144"- 168"		47-1/2"		54
HB-C-14-5	144"- 168"		59-1/2"		56
HB-C-14-6	144"- 168"		71-1/2"		66
HB-C-14-7	144"- 168"		83-1/2"		78
HB-C-14-8	144"- 168"		95-1/2"		123

Pallet Racking & Accessories

Price

Collections

Vestil Dunnage Racks

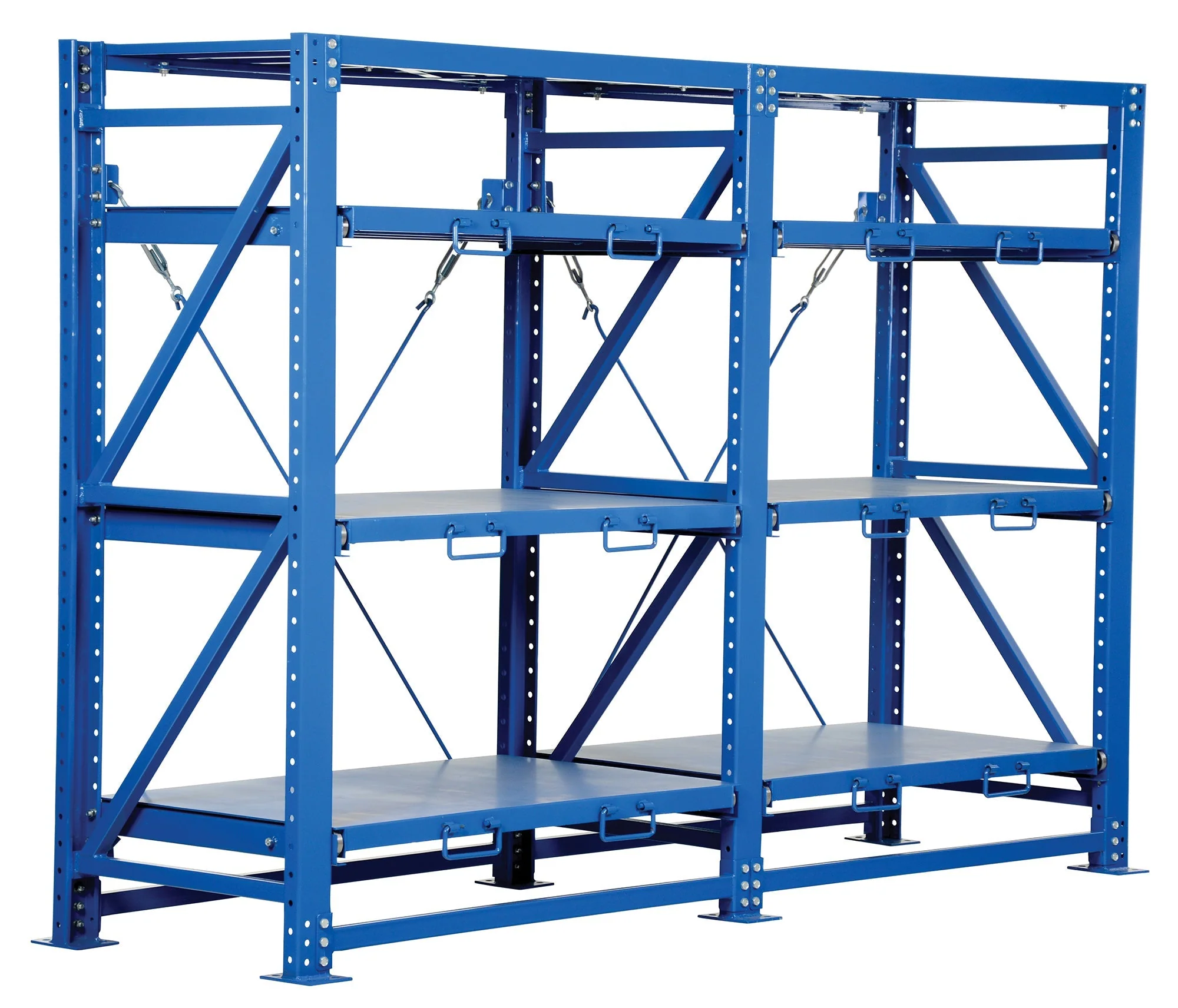

Vestil Heavy Duty Roll-Out Shelving

Vestil Heavy-Duty Cantilever Racking

Vestil Galvanized Cantilever Rack Kits

Vestil Gravity Flow Inserts

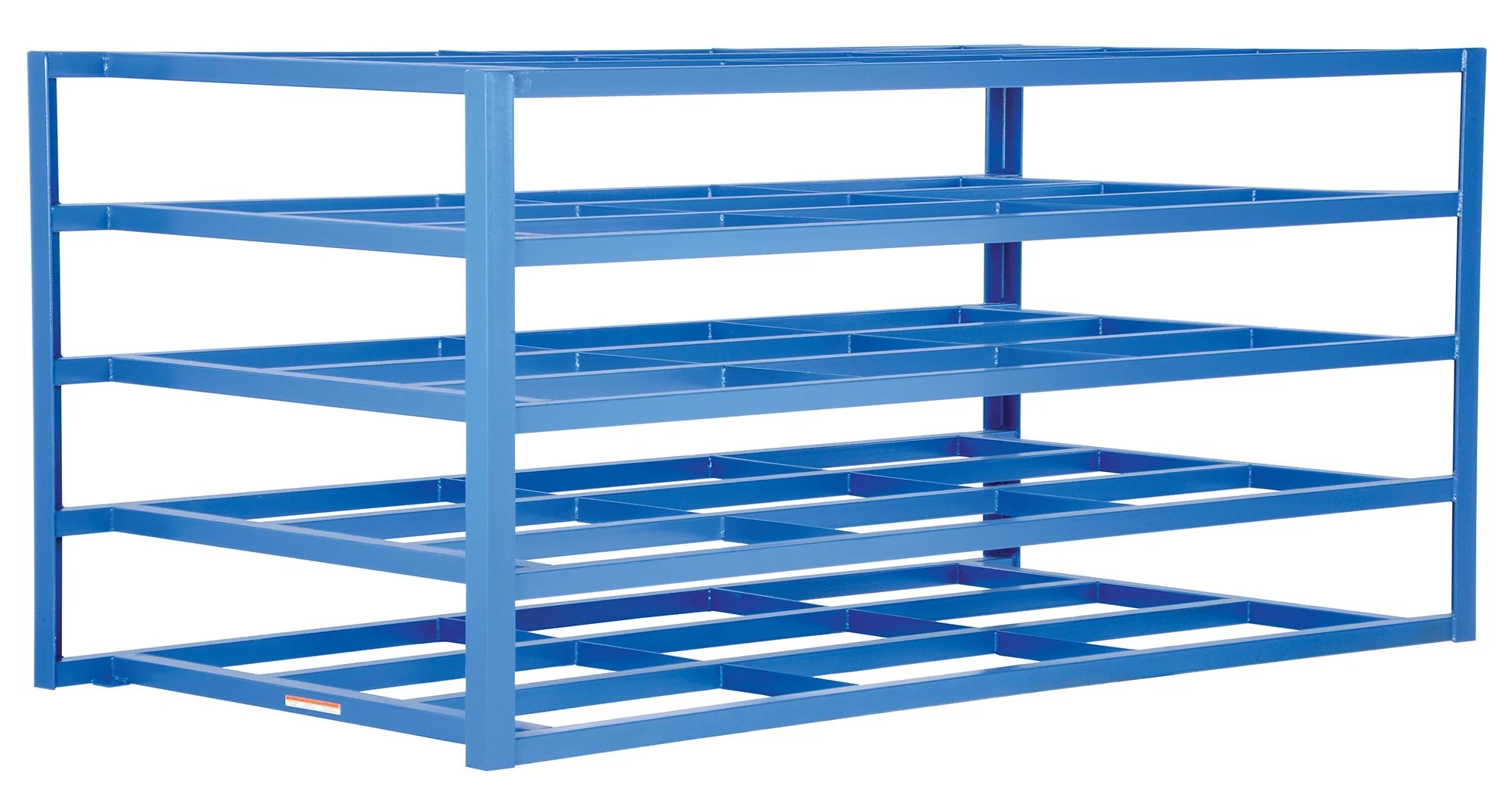

Vestil Horizontal Sheet Rack

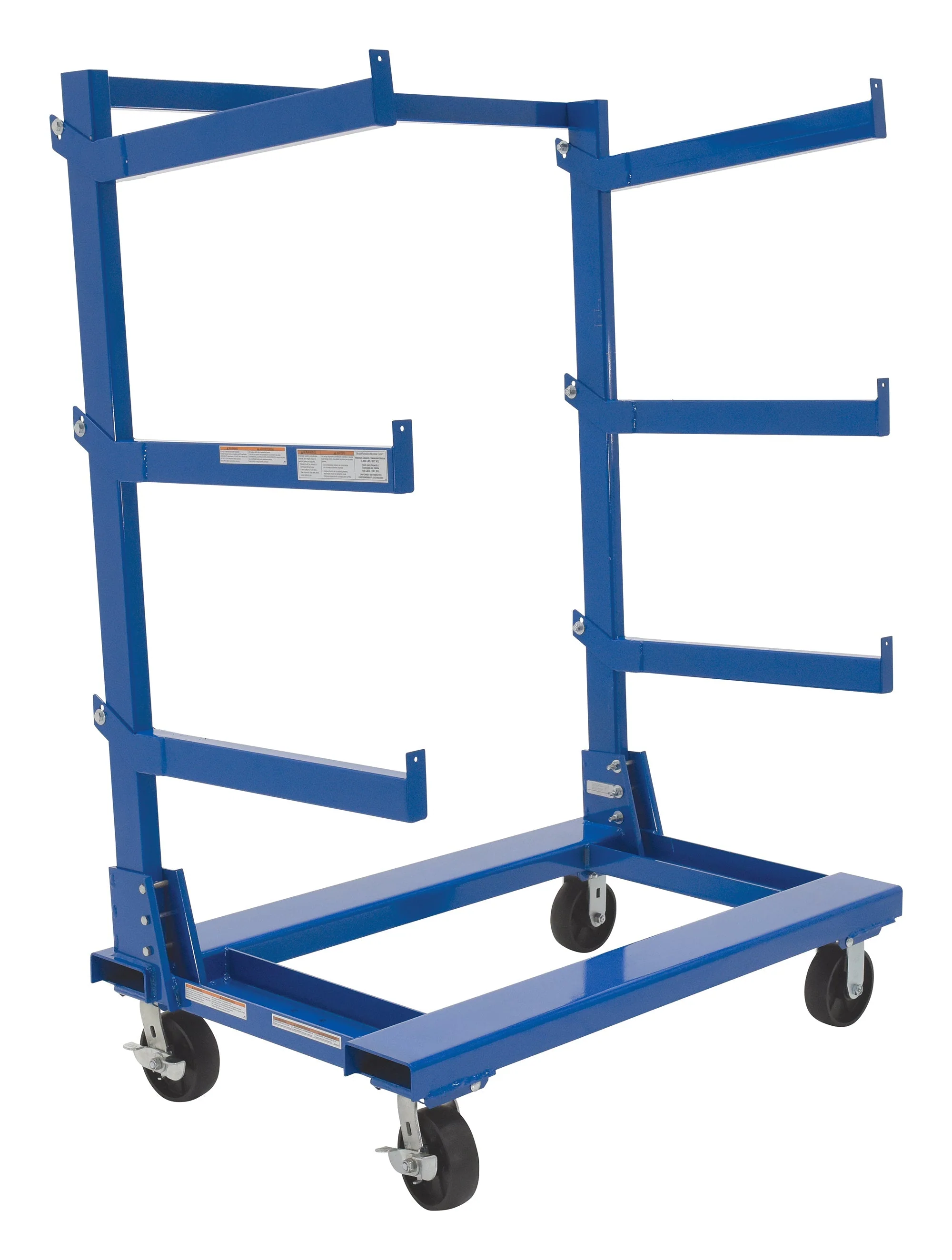

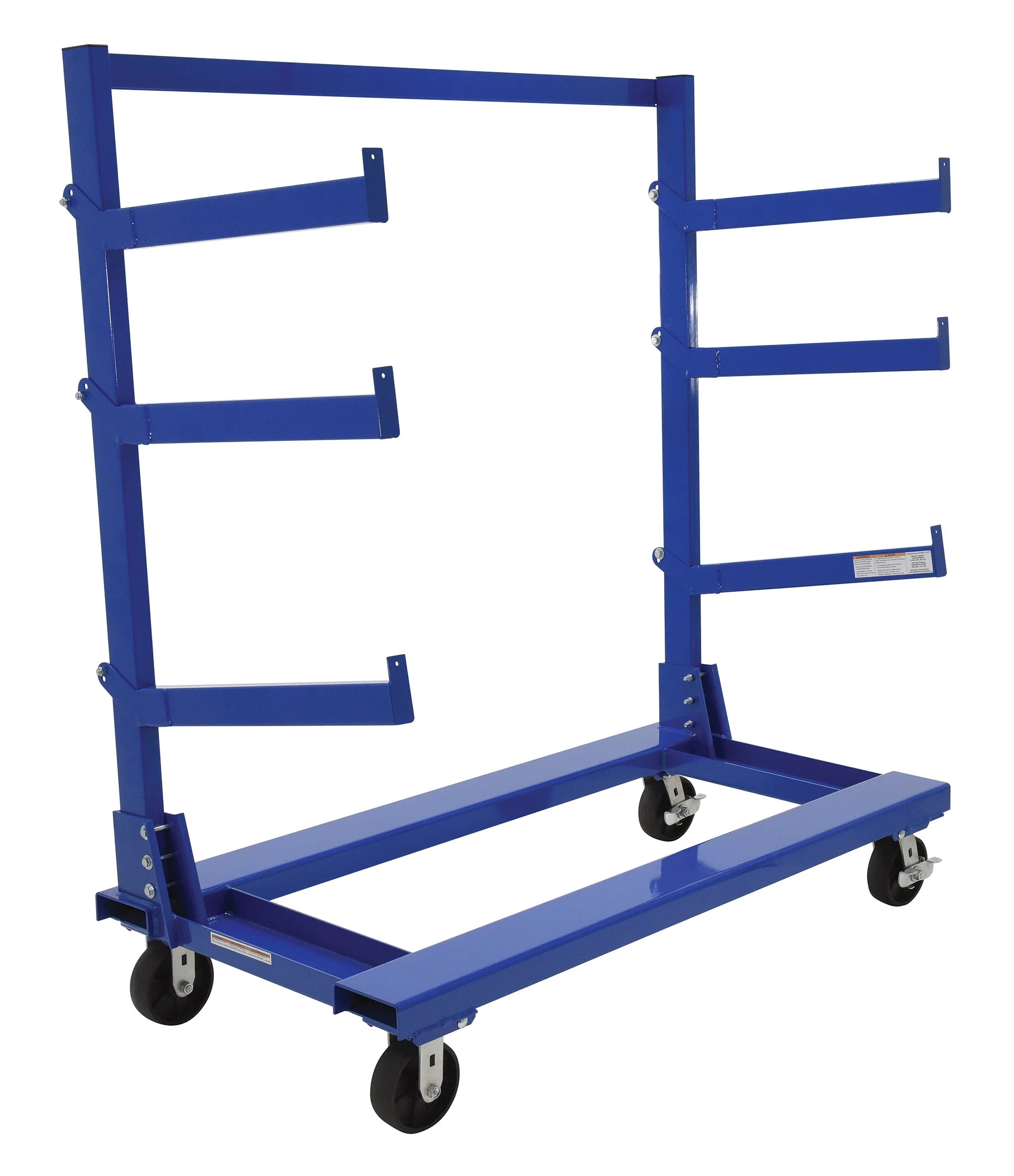

Vestil Cantilever Carts

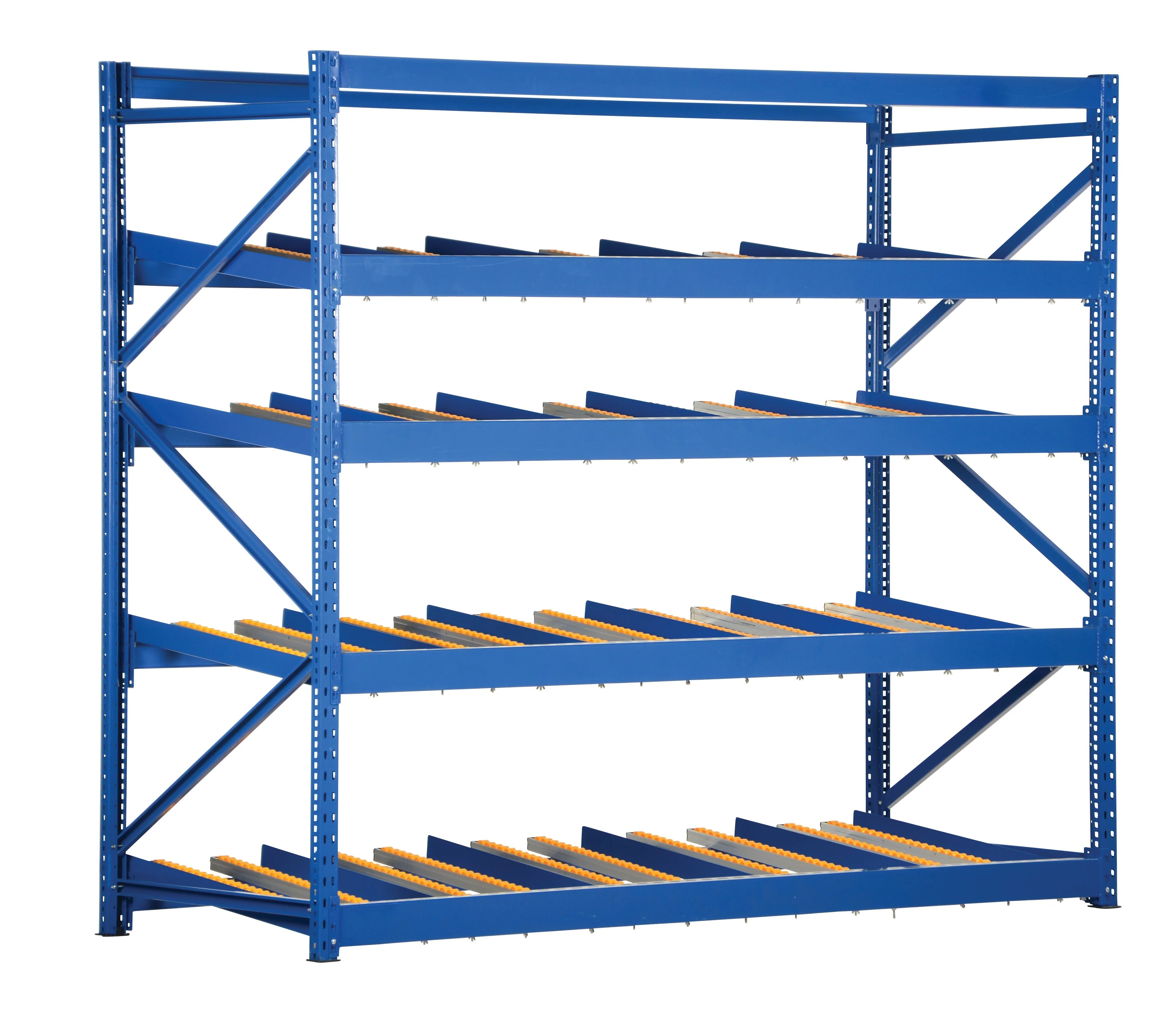

Vestil Carton Flow Racks

Vestil Economical Material Racks

Vestil Double Sided Horizontal Bar Rack

Vestil Expandable Vertical Bar Racks

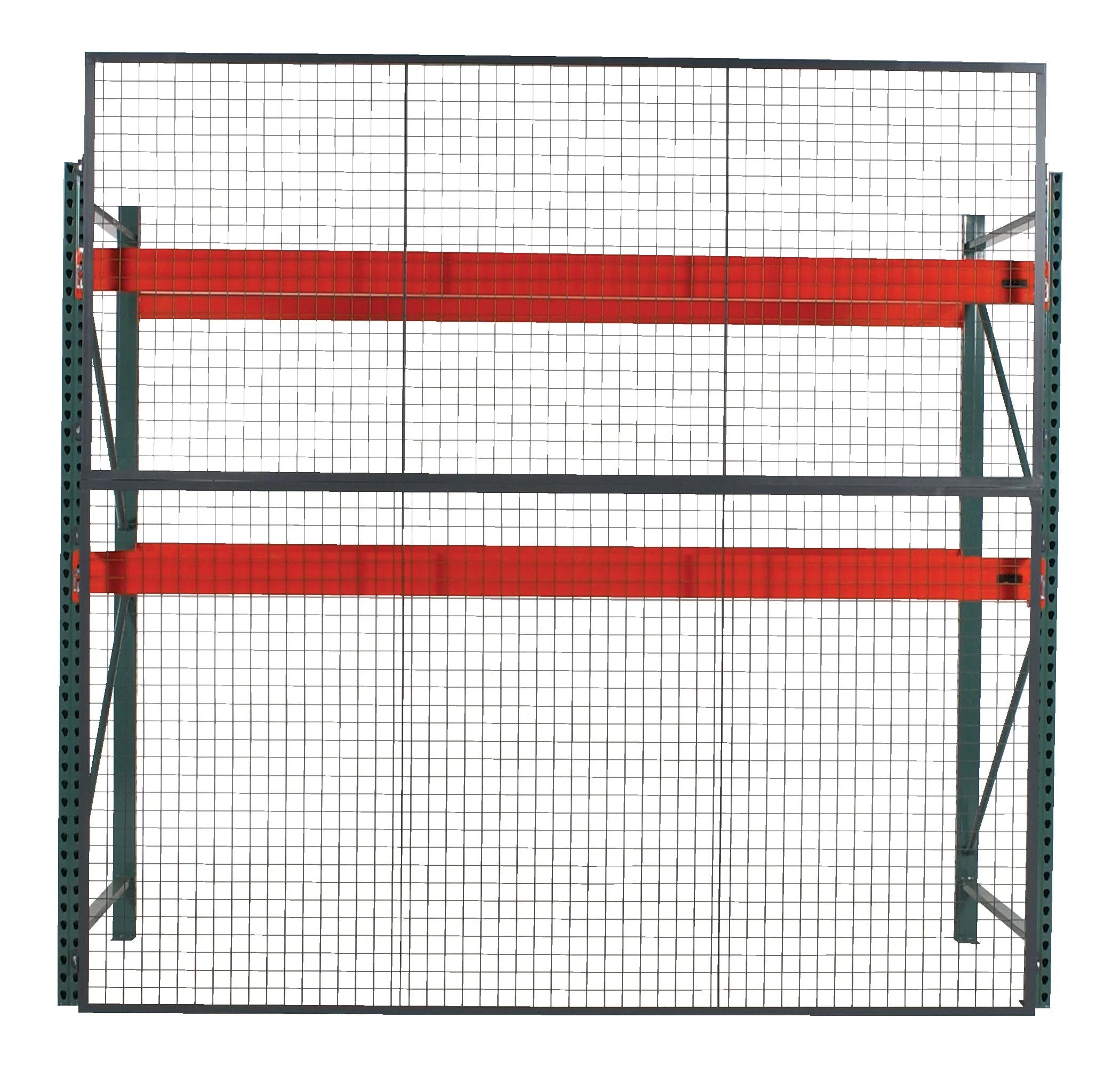

Vestil Back Guards for Pallet Rack
